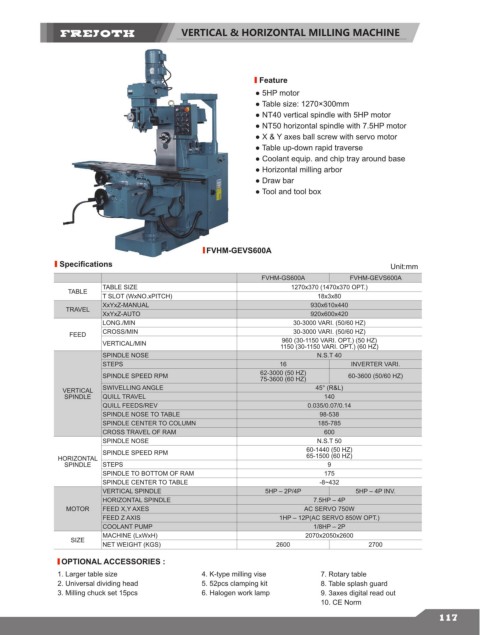

VERTICAL & HORIZONTAL MILLING MACHINE

Feature
● 5HP motor
● Table size: 1270×300mm
● NT40 vertical spindle with 5HP motor
● NT50 horizontal spindle with 7.5HP motor
● X & Y axes ball screw with servo motor
● Table up-down rapid traverse
● Coolant equip. and chip tray around base
● Horizontal milling arbor
● Draw bar
● Tool and tool box

FVHM-GEVS600A
Specifications Unit:mm

FVHM-GS600A FVHM-GEVS600A
TABLE SIZE 1270x370 (1470x370 OPT.)
TABLE
T SLOT (WxNO.xPITCH) 18x3x80
XxYxZ-MANUAL 930x610x440
TRAVEL
XxYxZ-AUTO 920x600x420
LONG./MIN 30-3000 VARI. (50/60 HZ)
FEED CROSS/MIN 30-3000 VARI. (50/60 HZ)
960 (30-1150 VARI. OPT.) (50 HZ)
VERTICAL/MIN 1150 (30-1150 VARI. OPT.) (60 HZ)
SPINDLE NOSE N.S.T 40
STEPS 16 INVERTER VARI.
SPINDLE SPEED RPM 62-3000 (50 HZ) 60-3600 (50/60 HZ)
75-3600 (60 HZ)
VERTICAL SWIVELLING ANGLE 45° (R&L)
SPINDLE QUILL TRAVEL 140
QUILL FEEDS/REV 0.035/0.07/0.14
SPINDLE NOSE TO TABLE 98-538
SPINDLE CENTER TO COLUMN 185-785
CROSS TRAVEL OF RAM 600
SPINDLE NOSE N.S.T 50
SPINDLE SPEED RPM 60-1440 (50 HZ)
HORIZONTAL 65-1500 (60 HZ)
SPINDLE STEPS 9
SPINDLE TO BOTTOM OF RAM 175
SPINDLE CENTER TO TABLE -8~432
VERTICAL SPINDLE 5HP – 2P/4P 5HP – 4P INV.
HORIZONTAL SPINDLE 7.5HP – 4P
MOTOR FEED X,Y AXES AC SERVO 750W
FEED Z AXIS 1HP – 12P(AC SERVO 850W OPT.)
COOLANT PUMP 1/8HP – 2P
MACHINE (LxWxH) 2070x2050x2600
SIZE
NET WEIGHT (KGS) 2600 2700
OPTIONAL ACCESSORIES :
1. Larger table size 4. K-type milling vise 7. Rotary table
2. Universal dividing head 5. 52pcs clamping kit 8. Table splash guard
3. Milling chuck set 15pcs 6. Halogen work lamp 9. 3axes digital read out
10. CE Norm
