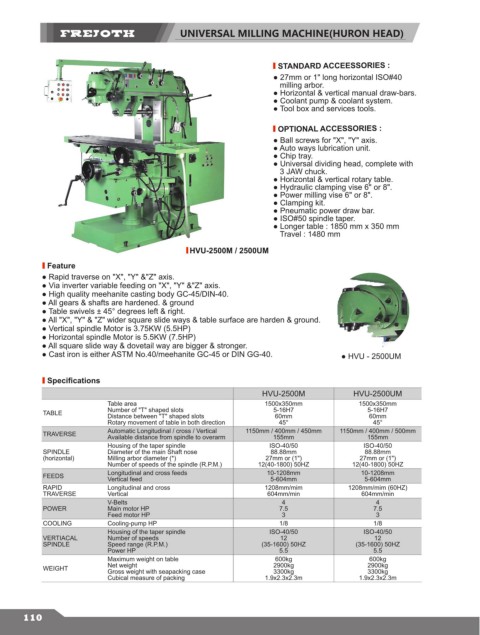

UNIVERSAL MILLING MACHINE(HURON HEAD)

STANDARD ACCEESSORIES :
● 27mm or 1" long horizontal ISO#40
milling arbor.
● Horizontal & vertical manual draw-bars.
● Coolant pump & coolant system.
● Tool box and services tools.

OPTIONAL ACCESSORIES :
● Ball screws for "X", "Y" axis.
● Auto ways lubrication unit.
● Chip tray.
● Universal dividing head, complete with
3 JAW chuck.
● Horizontal & vertical rotary table.
● Hydraulic clamping vise 6" or 8".
● Power milling vise 6" or 8".
● Clamping kit.
● Pneumatic power draw bar.
● ISO#50 spindle taper.
● Longer table : 1850 mm x 350 mm
Travel : 1480 mm

HVU-2500M / 2500UM

Feature
● Rapid traverse on "X", "Y" &"Z" axis.
● Via inverter variable feeding on "X", "Y" &"Z" axis.
● High quality meehanite casting body GC-45/DIN-40.
● All gears & shafts are hardened. & ground
● Table swivels ± 45° degrees left & right.
● All "X", "Y" & "Z" wider square slide ways & table surface are harden & ground.
● Vertical spindle Motor is 3.75KW (5.5HP)
● Horizontal spindle Motor is 5.5KW (7.5HP)
● All square slide way & dovetail way are bigger & stronger.
● Cast iron is either ASTM No.40/meehanite GC-45 or DIN GG-40. ● HVU - 2500UM

Specifications
HVU-2500M HVU-2500UM
Table area 1500x350mm 1500x350mm
TABLE Number of "T" shaped slots 5-16H7 5-16H7
60mm
60mm
Distance between "T" shaped slots
Rotary movement of table in both direction 45° 45°
TRAVERSE Automatic Longitudinal / cross / Vertical 1150mm / 400mm / 450mm 1150mm / 400mm / 500mm
155mm
Available distance from spindle to overarm
155mm
Housing of the taper spindle ISO-40/50 ISO-40/50
SPINDLE Diameter of the main Shaft nose 88.88mm 88.88mm
(horizontal) Milling arbor diameter (*) 27mm or (1") 27mm or (1")
Number of speeds of the spindle (R.P.M.) 12(40-1800) 50HZ 12(40-1800) 50HZ
FEEDS Longitudinal and cross feeds 10-1208mm 10-1208mm
5-604mm
5-604mm
Vertical feed
RAPID Longitudinal and cross 1208mm/mim 1208mm/mim (60HZ)
TRAVERSE Vertical 604mm/min 604mm/min
V-Belts 4 4
POWER Main motor HP 7.5 7.5
Feed motor HP 3 3
COOLING Cooling-pump HP 1/8 1/8
Housing of the taper spindle ISO-40/50 ISO-40/50
VERTIACAL Number of speeds 12 12
SPINDLE Speed range (R.P.M.) (35-1600) 50HZ (35-1600) 50HZ
Power HP 5.5 5.5
Maximum weight on table 600kg 600kg
WEIGHT Net weight 2900kg 2900kg
3300kg
Gross weight with seapacking case
3300kg
Cubical measure of packing 1.9x2.3x2.3m 1.9x2.3x2.3m
