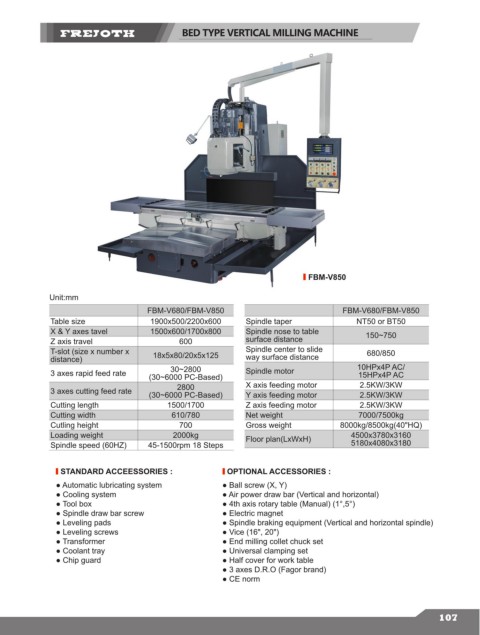

BED TYPE VERTICAL MILLING MACHINE

FBM-V850

Unit:mm
FBM-V680/FBM-V850 FBM-V680/FBM-V850
Table size 1900x500/2200x600 Spindle taper NT50 or BT50
X & Y axes tavel 1500x600/1700x800 Spindle nose to table 150~750
Z axis travel 600 surface distance
T-slot (size x number x 18x5x80/20x5x125 Spindle center to slide 680/850
distance) way surface distance
30~2800
3 axes rapid feed rate (30~6000 PC-Based) Spindle motor 10HPx4P AC/
15HPx4P AC
2800
3 axes cutting feed rate (30~6000 PC-Based) X axis feeding motor 2.5KW/3KW
2.5KW/3KW
Y axis feeding motor
Cutting length 1500/1700 Z axis feeding motor 2.5KW/3KW
Cutting width 610/780 Net weight 7000/7500kg
Cutling height 700 Gross weight 8000kg/8500kg(40"HQ)
Loading weight 2000kg Floor plan(LxWxH) 4500x3780x3160
Spindle speed (60HZ) 45-1500rpm 18 Steps 5180x4080x3180

STANDARD ACCEESSORIES : OPTIONAL ACCESSORIES :

● Automatic lubricating system ● Ball screw (X, Y)
● Cooling system ● Air power draw bar (Vertical and horizontal)
● Tool box ● 4th axis rotary table (Manual) (1°,5°)
● Spindle draw bar screw ● Electric magnet
● Leveling pads ● Spindle braking equipment (Vertical and horizontal spindle)
● Leveling screws ● Vice (16", 20")
● Transformer ● End milling collet chuck set
● Coolant tray ● Universal clamping set
● Chip guard ● Half cover for work table
● 3 axes D.R.O (Fagor brand)
● CE norm

107
