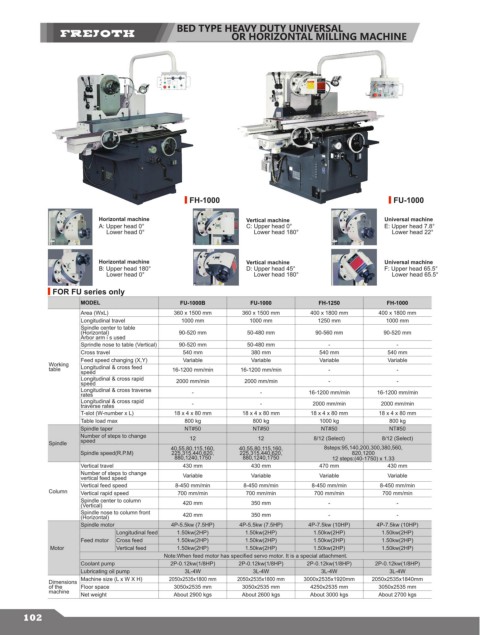

BED TYPE HEAVY DUTY UNIVERSAL
OR HORIZONTAL MILLING MACHINE

FH-1000 FU-1000

Horizontal machine Vertical machine Universal machine
A: Upper head 0° C: Upper head 0° E: Upper head 7.8°
Lower head 0° Lower head 180° Lower head 22°

Horizontal machine Vertical machine Universal machine
B: Upper head 180° D: Upper head 45° F: Upper head 65.5°
Lower head 0° Lower head 180° Lower head 65.5°

FOR FU series only
MODEL FU-1000B FU-1000 FH-1250 FH-1000
Area (WxL) 360 x 1500 mm 360 x 1500 mm 400 x 1800 mm 400 x 1800 mm
Longitudinal travel 1000 mm 1000 mm 1250 mm 1000 mm
Spindle center to table
(Horizontal) 90-520 mm 50-480 mm 90-560 mm 90-520 mm
Arbor arm i s used
Sprindle nose to table (Vertical) 90-520 mm 50-480 mm - -
Cross travel 540 mm 380 mm 540 mm 540 mm
Feed speed changing (X,Y) Variable Variable Variable Variable
Working
table Longitudinal & cross feed 16-1200 mm/min 16-1200 mm/min - -
speed
Longitudinal & cross rapid 2000 mm/min 2000 mm/min - -
speed
Longitudinal & cross traverse - - 16-1200 mm/min 16-1200 mm/min
rates
Longitudinal & cross rapid - - 2000 mm/min 2000 mm/min
traverse rates
T-slot (W-number x L) 18 x 4 x 80 mm 18 x 4 x 80 mm 18 x 4 x 80 mm 18 x 4 x 80 mm
Table load max 800 kg 800 kg 1000 kg 800 kg
Spindle taper NT#50 NT#50 NT#50 NT#50
Number of steps to change 12 12 8/12 (Select) 8/12 (Select)
Spindle speed
40,55,80,115,160, 40,55,80,115,160, 8steps:95,140,200,300,380,560,
Spindle speed(R.P.M) 225,315,440,620, 225,315,440,620, 820,1200
880,1240,1750 880,1240,1750 12 steps:(40-1750) x 1.33
Vertical travel 430 mm 430 mm 470 mm 430 mm
Number of steps to change
vertical feed speed Variable Variable Variable Variable
Vertical feed speed 8-450 mm/min 8-450 mm/min 8-450 mm/min 8-450 mm/min
Column Vertical rapid speed 700 mm/min 700 mm/min 700 mm/min 700 mm/min
Spindle center to column
(Vertical) 420 mm 350 mm - -
Spindle nose to column front 420 mm 350 mm - -
(Horizontal)
Spindle motor 4P-5.5kw (7.5HP) 4P-5.5kw (7.5HP) 4P-7.5kw (10HP) 4P-7.5kw (10HP)
Longitudinal feed 1.50kw(2HP) 1.50kw(2HP) 1.50kw(2HP) 1.50kw(2HP)
Feed motor Cross feed 1.50kw(2HP) 1.50kw(2HP) 1.50kw(2HP) 1.50kw(2HP)
Motor Vertical feed 1.50kw(2HP) 1.50kw(2HP) 1.50kw(2HP) 1.50kw(2HP)
Note:When feed motor has specified servo motor. It is a special attachment.
Coolant pump 2P-0.12kw(1/8HP) 2P-0.12kw(1/8HP) 2P-0.12kw(1/8HP) 2P-0.12kw(1/8HP)
Lubricating oil pump 3L-4W 3L-4W 3L-4W 3L-4W
Machine size (L x W X H) 2050x2535x1800 mm 2050x2535x1800 mm 3000x2535x1920mm 2050x2535x1840mm
Dimensions
of the Floor space 3050x2535 mm 3050x2535 mm 4250x2535 mm 3050x2535 mm
machine
Net weight About 2900 kgs About 2600 kgs About 3000 kgs About 2700 kgs
