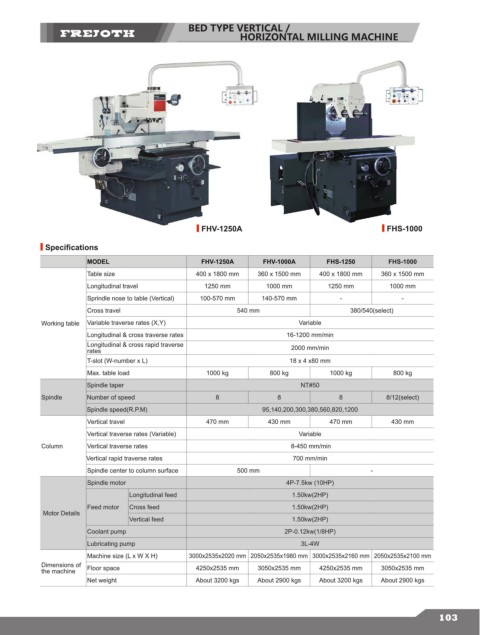

BED TYPE VERTICAL /
HORIZONTAL MILLING MACHINE

FHV-1250A FHS-1000

Specifications
MODEL FHV-1250A FHV-1000A FHS-1250 FHS-1000
Table size 400 x 1800 mm 360 x 1500 mm 400 x 1800 mm 360 x 1500 mm
Longitudinal travel 1250 mm 1000 mm 1250 mm 1000 mm
Sprindle nose to table (Vertical) 100-570 mm 140-570 mm - -
Cross travel 540 mm 380/540(select)
Working table Variable traverse rates (X,Y) Variable
Longitudinal & cross traverse rates 16-1200 mm/min
Longitudinal & cross rapid traverse 2000 mm/min
rates
T-slot (W-number x L) 18 x 4 x80 mm
Max. table load 1000 kg 800 kg 1000 kg 800 kg
Spindle taper NT#50
Spindle Number of speed 8 8 8 8/12(select)
Spindle speed(R.P.M) 95,140,200,300,380,560,820,1200
Vertical travel 470 mm 430 mm 470 mm 430 mm
Vertical traverse rates (Variable) Variable
Column Vertical traverse rates 8-450 mm/min
Vertical rapid traverse rates 700 mm/min
Spindle center to column surface 500 mm -
Spindle motor 4P-7.5kw (10HP)
Longitudinal feed 1.50kw(2HP)
Feed motor Cross feed 1.50kw(2HP)
Motor Details
Vertical feed 1.50kw(2HP)
Coolant pump 2P-0.12kw(1/8HP)
Lubricating pump 3L-4W
Machine size (L x W X H) 3000x2535x2020 mm 2050x2535x1980 mm 3000x2535x2160 mm 2050x2535x2100 mm
Dimensions of Floor space 4250x2535 mm 3050x2535 mm 4250x2535 mm 3050x2535 mm
the machine
Net weight About 3200 kgs About 2900 kgs About 3200 kgs About 2900 kgs
