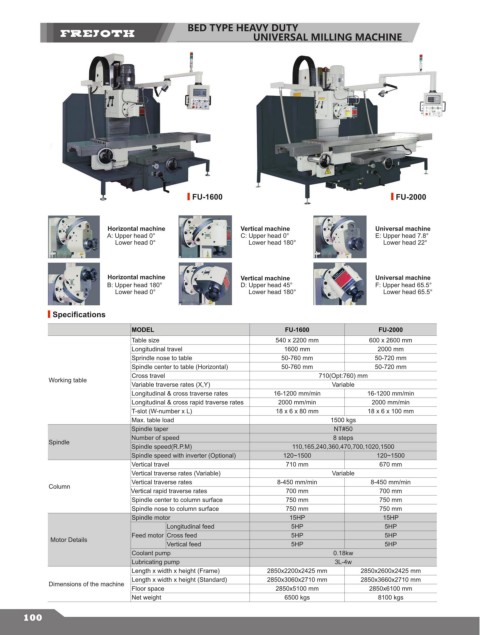

BED TYPE HEAVY DUTY
UNIVERSAL MILLING MACHINE

FU-1600 FU-2000

Horizontal machine Vertical machine Universal machine
A: Upper head 0° C: Upper head 0° E: Upper head 7.8°
Lower head 0° Lower head 180° Lower head 22°

Horizontal machine Vertical machine Universal machine
B: Upper head 180° D: Upper head 45° F: Upper head 65.5°
Lower head 0° Lower head 180° Lower head 65.5°

Specifications

MODEL FU-1600 FU-2000
Table size 540 x 2200 mm 600 x 2600 mm
Longitudinal travel 1600 mm 2000 mm
Sprindle nose to table 50-760 mm 50-720 mm
Spindle center to table (Horizontal) 50-760 mm 50-720 mm
Cross travel 710(Opt:760) mm
Working table
Variable traverse rates (X,Y) Variable
Longitudinal & cross traverse rates 16-1200 mm/min 16-1200 mm/min
Longitudinal & cross rapid traverse rates 2000 mm/min 2000 mm/min
T-slot (W-number x L) 18 x 6 x 80 mm 18 x 6 x 100 mm
Max. table load 1500 kgs
Spindle taper NT#50
Number of speed 8 steps
Spindle
Spindle speed(R.P.M) 110,165,240,360,470,700,1020,1500
Spindle speed with inverter (Optional) 120~1500 120~1500
Vertical travel 710 mm 670 mm
Vertical traverse rates (Variable) Variable
Vertical traverse rates 8-450 mm/min 8-450 mm/min
Column
Vertical rapid traverse rates 700 mm 700 mm
Spindle center to column surface 750 mm 750 mm
Spindle nose to column surface 750 mm 750 mm
Spindle motor 15HP 15HP
Longitudinal feed 5HP 5HP
Feed motor Cross feed 5HP 5HP
Motor Details
Vertical feed 5HP 5HP
Coolant pump 0.18kw
Lubricating pump 3L-4w
Length x width x height (Frame) 2850x2200x2425 mm 2850x2600x2425 mm
Length x width x height (Standard) 2850x3060x2710 mm 2850x3660x2710 mm
Dimensions of the machine
Floor space 2850x5100 mm 2850x6100 mm
Net weight 6500 kgs 8100 kgs
