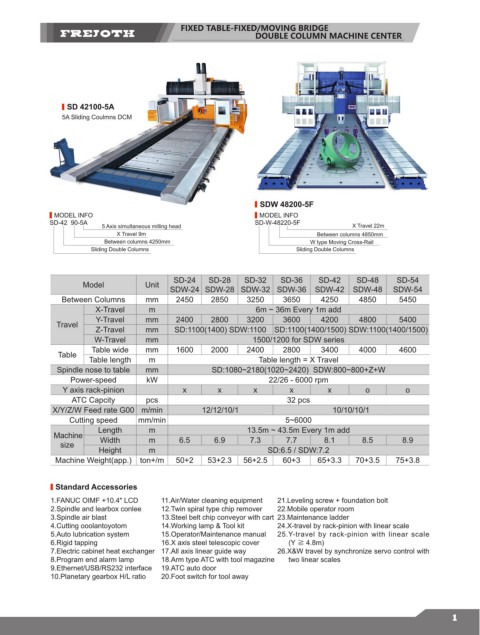

FIXED TABLE-FIXED/MOVING BRIDGE
DOUBLE COLUMN MACHINE CENTER

SD 42100-5A
5A Sliding Coulmns DCM

SDW 48200-5F
MODEL INFO MODEL INFO
SD-42 90-5A SD-W-48220-5F
5 Axis simultaneous milling head X Travel 22m
X Travel 9m Between columns 4850mm
Between columns 4250mm W type Moving Cross-Rail
Sliding Double Columns Sliding Double Columns

SD-24 SD-28 SD-32 SD-36 SD-42 SD-48 SD-54
Model Unit
SDW-24 SDW-28 SDW-32 SDW-36 SDW-42 SDW-48 SDW-54
Between Columns mm 2450 2850 3250 3650 4250 4850 5450
X-Travel m 6m ~ 36m Every 1m add
Y-Travel mm 2400 2800 3200 3600 4200 4800 5400
Travel
Z-Travel mm SD:1100(1400) SDW:1100 SD:1100(1400/1500) SDW:1100(1400/1500)
W-Travel mm 1500/1200 for SDW series
Table wide mm 1600 2000 2400 2800 3400 4000 4600
Table
Table length m Table length = X Travel
Spindle nose to table mm SD:1080~2180(1020~2420) SDW:800~800+Z+W
Power-speed kW 22/26 - 6000 rpm
Y axis rack-pinion x x x x x o o
ATC Capcity pcs 32 pcs
X/Y/Z/W Feed rate G00 m/min 12/12/10/1 10/10/10/1
Cutting speed mm/min 5~6000
Length m 13.5m ~ 43.5m Every 1m add
Machine Width m 6.5 6.9 7.3 7.7 8.1 8.5 8.9
size
Height m SD:6.5 / SDW:7.2
Machine Weight(app.) ton+/m 50+2 53+2.3 56+2.5 60+3 65+3.3 70+3.5 75+3.8

Standard Accessories
1.FANUC OIMF +10.4" LCD 11.Air/Water cleaning equipment 21.Leveling screw + foundation bolt
2.Spindle and learbox conlee 12.Twin spiral type chip remover 22.Mobile operator room
3.Spindle air blast 13.Steel belt chip conveyor with cart 23.Maintenance ladder
4.Cutting ooolantoyotom 14.Working lamp & Tool kit 24.X-travel by rack-pinion with linear scale
5.Auto lubrication system 15.Operator/Maintenance manual 25.Y-travel by rack-pinion with linear scale
6.Rigid tapping 16.X axis steel telescopic cover (Y ≧ 4.8m)
7.Electric cabinet heat exchanger 17.All axis linear guide way 26.X&W travel by synchronize servo control with
8.Program end alarm lamp 18.Arm type ATC with tool magazine two linear scales
9.Ethernet/USB/RS232 interface 19.ATC auto door
10.Planetary gearbox H/L ratio 20.Foot switch for tool away
