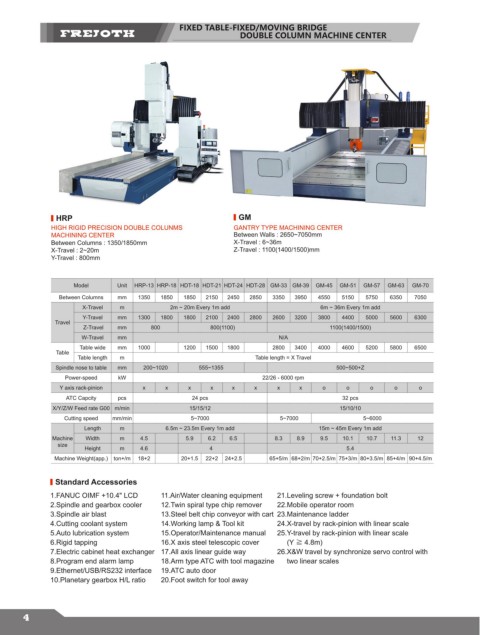

FIXED TABLE-FIXED/MOVING BRIDGE
DOUBLE COLUMN MACHINE CENTER
HRP GM
HIGH RIGID PRECISION DOUBLE COLUNMS GANTRY TYPE MACHINING CENTER
MACHINING CENTER Between Walls : 2650~7050mm
Between Columns : 1350/1850mm X-Travel : 6~36m
X-Travel : 2~20m Z-Travel : 1100(1400/1500)mm
Y-Travel : 800mm
Model Unit HRP-13 HRP-18 HDT-18 HDT-21 HDT-24 HDT-28 GM-33 GM-39 GM-45 GM-51 GM-57 GM-63 GM-70
Between Columns mm 1350 1850 1850 2150 2450 2850 3350 3950 4550 5150 5750 6350 7050
X-Travel m 2m ~ 20m Every 1m add 6m ~ 36m Every 1m add
Y-Travel mm 1300 1800 1800 2100 2400 2800 2600 3200 3800 4400 5000 5600 6300
Travel
Z-Travel mm 800 800(1100) 1100(1400/1500)
W-Travel mm N/A
Table wide mm 1000 1200 1500 1800 2800 3400 4000 4600 5200 5800 6500
Table
Table length m Table length = X Travel
Spindle nose to table mm 200~1020 555~1355 500~500+Z
Power-speed kW 22/26 - 6000 rpm
Y axis rack-pinion x x x x x x x x o o o o o
ATC Capcity pcs 24 pcs 32 pcs
X/Y/Z/W Feed rate G00 m/min 15/15/12 15/10/10
Cutting speed mm/min 5~7000 5~7000 5~6000
Length m 6.5m ~ 23.5m Every 1m add 15m ~ 45m Every 1m add
Machine Width m 4.5 5.9 6.2 6.5 8.3 8.9 9.5 10.1 10.7 11.3 12
size
Height m 4.6 4 5.4
Machine Weight(app.) ton+/m 18+2 20+1.5 22+2 24+2.5 65+5/m 68+2/m 70+2.5/m 75+3/m 80+3.5/m 85+4/m 90+4.5/m
Standard Accessories
1.FANUC OIMF +10.4" LCD 11.Air/Water cleaning equipment 21.Leveling screw + foundation bolt
2.Spindle and gearbox cooler 12.Twin spiral type chip remover 22.Mobile operator room
3.Spindle air blast 13.Steel belt chip conveyor with cart 23.Maintenance ladder
4.Cutting coolant system 14.Working lamp & Tool kit 24.X-travel by rack-pinion with linear scale
5.Auto lubrication system 15.Operator/Maintenance manual 25.Y-travel by rack-pinion with linear scale
6.Rigid tapping 16.X axis steel telescopic cover (Y ≧ 4.8m)
7.Electric cabinet heat exchanger 17.All axis linear guide way 26.X&W travel by synchronize servo control with
8.Program end alarm lamp 18.Arm type ATC with tool magazine two linear scales
9.Ethernet/USB/RS232 interface 19.ATC auto door
10.Planetary gearbox H/L ratio 20.Foot switch for tool away
