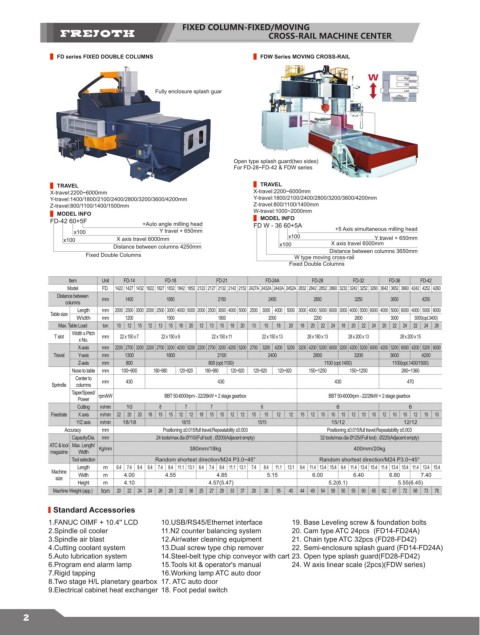

FIXED COLUMN-FIXED/MOVING
CROSS-RAIL MACHINE CENTER

FD series FIXED DOUBLE COLUMNS FDW Series MOVING CROSS-RAIL

Fully enclosure splash guar

Open type splash guard(two sides)
For FD-28~FD-42 & FDW series

TRAVEL TRAVEL
X-travel:2200~6000mm X-travel:2200~6000mm
Y-travel:1400/1800/2100/2400/2800/3200/3600/4200mm Y-travel:1800/2100/2400/2800/3200/3600/4200mm
Z-travel:800/1100/1400/1500mm Z-travel:800/1100/1400mm
MODEL INFO W-travel:1000~2000mm
MODEL INFO
FD-42 60+5F +Auto angle milling head FD W - 36 60+5A
x100 Y travel + 650mm +5 Axis simultaneous milling head
x100 X axis travel 6000mm x100 Y travel + 650mm
Distance between columns 4250mm x100 X axis travel 6000mm
Distance between columns 3650mm
Fixed Double Columns W type moving cross-rail
Fixed Double Columns
Item Unit FD-14 FD-18 FD-21 FD-24A FD-28 FD-32 FD-36 FD-42
Model FD. 1422 1427 1432 1822 1827 1832 1842 1852 2122 2127 2132 2142 2152 2427A 2432A 2442A 2452A 2832 2842 2852 2860 3232 3242 3252 3260 3642 3652 3660 4242 4252 4260
Distance between mm 1400 1850 2150 2450 2850 3250 3650 4250
columns
Length mm 2000 2500 3000 2000 2500 3000 4000 5000 2000 2500 3000 4000 5000 2500 3000 4000 5000 3000 4000 5000 6000 3000 4000 5000 6000 4000 5000 6000 4000 5000 6000
Table size
Width mm 1200 1500 1800 2000 2200 2600 3000 3000(opt.3400)
Max. Table Load ton 10 12 15 12 13 15 18 20 12 13 15 18 20 13 15 18 20 18 20 22 24 18 20 22 24 20 22 24 22 24 26
Width x Pitch
T slot mm 22 x 150 x 7 22 x 150 x 9 22 x 150 x 11 22 x 150 x 13 28 x 180 x 13 28 x 200 x 13 28 x 200 x 15
x No.
X-axis mm 2200 2700 3200 2200 2700 3200 4200 5200 2200 2700 3200 4200 5200 2700 3200 4200 5200 3200 4200 5200 6000 3200 4200 5200 6000 4200 5200 6000 4200 5200 6000
Travel Y-axis mm 1300 1800 2100 2400 2800 3200 3600 4200
Z-axis mm 800 800 (opt.1100) 1100 (opt.1400) 1100(opt.1400/1500)
Nose to table mm 100~900 180~980 120~920 180~980 120~920 120~920 120~920 150~1250 150~1250 260~1360
Center to mm 430 430 430 470
Sprindle columns
Taper/Speed/
Power rpm/kW BBT 50-6000rpm - 22/26kW + 2 stage gearbox BBT 50-6000rpm - 22/26kW + 2 stage gearbox
Cutting m/min 10 8 7 7 6 6 6
Feedrate X axis m/min 22 20 20 18 15 15 12 12 18 15 15 12 12 15 15 12 12 15 12 10 10 15 12 10 10 12 10 10 12 10 10
Y/Z axis m/min 18/18 18/15 15/15 15/12 12/12
Accuracy mm Positioning ±0.015/full travel;Repeatability ±0.003 Positioning ±0.015/full travel;Repeatability ±0.003
Capacity/Dia. mm 24 tools/max.dia Ø110/(Full tool) ; Ø200(Adjacent empty) 32 tools/max.dia Ø125/(Full tool) ; Ø220(Adjacent empty)
ATC & tool Max. Length/ Kg/mm 380mm/18kg 400mm/20kg
magazine Width
Tool selection Random shortest direction/M24 P3.0~45° Random shortest direction/M24 P3.0~45°
Length m 6.4 7.4 8.4 6.4 7.4 8.4 11.1 13.1 6.4 7.4 8.4 11.1 13.1 7.4 8.4 11.1 13.1 9.4 11.4 13.4 15.4 9.4 11.4 13.4 15.4 11.4 13.4 15.4 11.4 13.4 15.4
Machine Width m 4.00 4.55 4.85 5.15 6.00 6.40 6.80 7.40
size
Height m 4.10 4.57(5.47) 5.2(6.1) 5.55(6.45)
Machine Weight (app.) ton 20 22 24 24 26 28 32 36 25 27 29 33 37 28 30 35 40 44 49 54 59 50 55 60 65 62 67 72 68 73 78
Standard Accessories

1.FANUC OIMF + 10.4'' LCD 10.USB/RS45/Ethernet interface 19. Base Leveling screw & foundation bolts
2.Spindle oil cooler 11.N2 counter balancing system 20. Cam type ATC 24pcs (FD14-FD24A)
3.Spindle air blast 12.Air/water cleaning equipment 21. Chain type ATC 32pcs (FD28-FD42)
4.Cutting coolant system 13.Dual screw type chip remover 22. Semi-enclosure splash guard (FD14-FD24A)
5.Auto lubrication system 14.Steel-belt type chip conveyor with cart 23. Open type splash guard(FD28-FD42)
6.Program end alarm lamp 15.Tools kit & operator's manual 24. W axis linear scale (2pcs)(FDW series)
7.Rigid tapping 16.Working lamp ATC auto door
8.Two stage H/L planetary gearbox 17. ATC auto door
9.Electrical cabinet heat exchanger 18. Foot pedal switch

2
