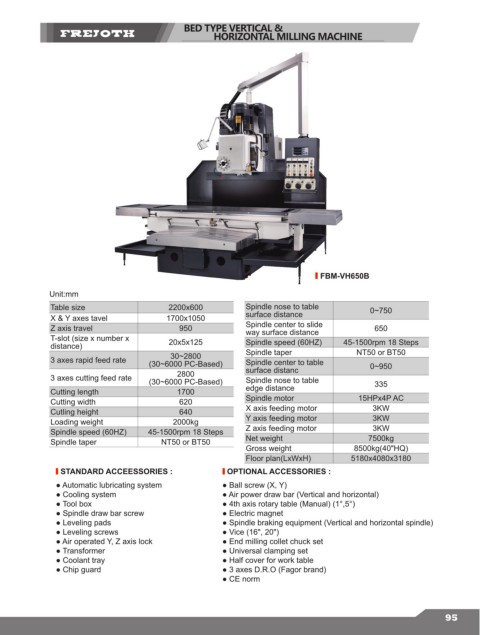

BED TYPE VERTICAL &
HORIZONTAL MILLING MACHINE

FBM-VH650B

Unit:mm
Table size 2200x600 Spindle nose to table 0~750
X & Y axes tavel 1700x1050 surface distance
Z axis travel 950 Spindle center to slide 650
way surface distance
T-slot (size x number x 20x5x125 Spindle speed (60HZ) 45-1500rpm 18 Steps
distance) Spindle taper NT50 or BT50
30~2800
3 axes rapid feed rate (30~6000 PC-Based) Spindle center to table 0~950
2800
3 axes cutting feed rate (30~6000 PC-Based) surface distanc 335
Spindle nose to table
Cutting length 1700 edge distance
Cutting width 620 Spindle motor 15HPx4P AC
Cutling height 640 X axis feeding motor 3KW
Loading weight 2000kg Y axis feeding motor 3KW
Spindle speed (60HZ) 45-1500rpm 18 Steps Z axis feeding motor 3KW
Spindle taper NT50 or BT50 Net weight 7500kg
Gross weight 8500kg(40"HQ)
Floor plan(LxWxH) 5180x4080x3180
STANDARD ACCEESSORIES : OPTIONAL ACCESSORIES :

● Automatic lubricating system ● Ball screw (X, Y)
● Cooling system ● Air power draw bar (Vertical and horizontal)
● Tool box ● 4th axis rotary table (Manual) (1°,5°)
● Spindle draw bar screw ● Electric magnet
● Leveling pads ● Spindle braking equipment (Vertical and horizontal spindle)
● Leveling screws ● Vice (16", 20")
● Air operated Y, Z axis lock ● End milling collet chuck set
● Transformer ● Universal clamping set
● Coolant tray ● Half cover for work table
● Chip guard ● 3 axes D.R.O (Fagor brand)
● CE norm
