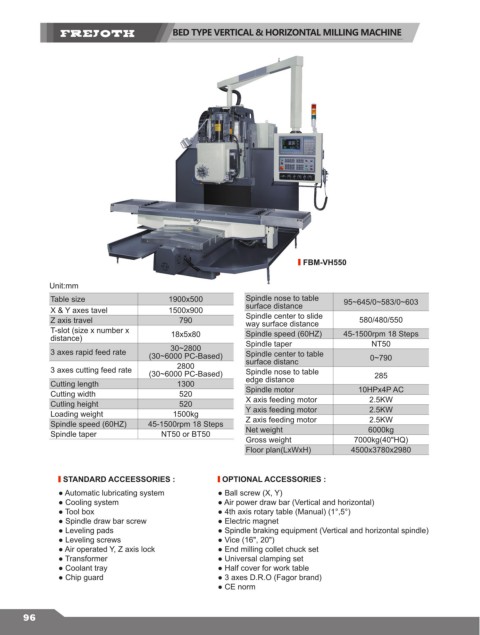

BED TYPE VERTICAL & HORIZONTAL MILLING MACHINE

FBM-VH550

Unit:mm
Table size 1900x500 Spindle nose to table 95~645/0~583/0~603
X & Y axes tavel 1500x900 surface distance
Z axis travel 790 Spindle center to slide 580/480/550
way surface distance
T-slot (size x number x 18x5x80 Spindle speed (60HZ) 45-1500rpm 18 Steps
distance) Spindle taper NT50
30~2800
3 axes rapid feed rate (30~6000 PC-Based) Spindle center to table 0~790
2800
3 axes cutting feed rate (30~6000 PC-Based) surface distanc 285
Spindle nose to table
Cutting length 1300 edge distance
Cutting width 520 Spindle motor 10HPx4P AC
Cutling height 520 X axis feeding motor 2.5KW
Loading weight 1500kg Y axis feeding motor 2.5KW
Spindle speed (60HZ) 45-1500rpm 18 Steps Z axis feeding motor 2.5KW
Spindle taper NT50 or BT50 Net weight 6000kg
Gross weight 7000kg(40"HQ)
Floor plan(LxWxH) 4500x3780x2980

STANDARD ACCEESSORIES : OPTIONAL ACCESSORIES :
● Automatic lubricating system ● Ball screw (X, Y)
● Cooling system ● Air power draw bar (Vertical and horizontal)
● Tool box ● 4th axis rotary table (Manual) (1°,5°)
● Spindle draw bar screw ● Electric magnet
● Leveling pads ● Spindle braking equipment (Vertical and horizontal spindle)
● Leveling screws ● Vice (16", 20")
● Air operated Y, Z axis lock ● End milling collet chuck set
● Transformer ● Universal clamping set
● Coolant tray ● Half cover for work table
● Chip guard ● 3 axes D.R.O (Fagor brand)
● CE norm
