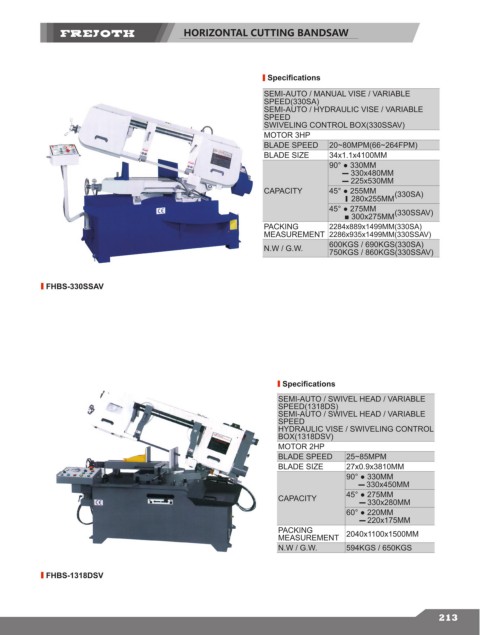

HORIZONTAL CUTTING BANDSAW

Specifications
SEMI-AUTO / MANUAL VISE / VARIABLE
SPEED(330SA)
SEMI-AUTO / HYDRAULIC VISE / VARIABLE
SPEED
SWIVELING CONTROL BOX(330SSAV)
MOTOR 3HP
BLADE SPEED 20~80MPM(66~264FPM)
BLADE SIZE 34x1.1x4100MM
90° ● 330MM
▬ 330x480MM
▬ 225x530MM
CAPACITY 45° ● 255MM (330SA)
▌ 280x255MM
45° ● 275MM (330SSAV)
■ 300x275MM
PACKING 2284x889x1499MM(330SA)
MEASUREMENT 2286x935x1499MM(330SSAV)

N.W / G.W. 600KGS / 690KGS(330SA)
750KGS / 860KGS(330SSAV)

FHBS-330SSAV

Specifications

SEMI-AUTO / SWIVEL HEAD / VARIABLE
SPEED(1318DS)
SEMI-AUTO / SWIVEL HEAD / VARIABLE
SPEED
HYDRAULIC VISE / SWIVELING CONTROL
BOX(1318DSV)
MOTOR 2HP
BLADE SPEED 25~85MPM
BLADE SIZE 27x0.9x3810MM
90° ● 330MM
▬ 330x450MM

CAPACITY 45° ● 275MM
▬ 330x280MM
60° ● 220MM
▬ 220x175MM
PACKING 2040x1100x1500MM
MEASUREMENT
N.W / G.W. 594KGS / 650KGS

FHBS-1318DSV
