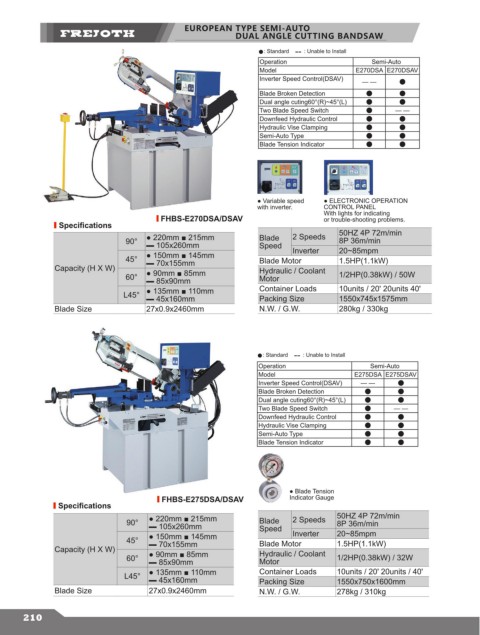

EUROPEAN TYPE SEMI-AUTO
DUAL ANGLE CUTTING BANDSAW

● : Standard -- : Unable to Install
Operation Semi-Auto
Model E270DSA E270DSAV
Inverter Speed Control(DSAV) — — ●
Blade Broken Detection ● ●
Dual angle cuting60°(R)~45°(L) ● ●
Two Blade Speed Switch ● — —
Downfeed Hydraulic Control ● ●
Hydraulic Vise Clamping ● ●
Semi-Auto Type ● ●
Blade Tension Indicator ● ●

● Variable speed ● ELECTRONIC OPERATION
with inverter. CONTROL PANEL
FHBS-E270DSA/DSAV With lights for indicating
or trouble-shooting problems.
Specifications 50HZ 4P 72m/min
90° ● 220mm ■ 215mm Blade 2 Speeds 8P 36m/min
▬ 105x260mm
Speed
Inverter
45° ● 150mm ■ 145mm Blade Motor 20~85mpm
1.5HP(1.1kW)
▬ 70x155mm
Capacity (H X W) Hydraulic / Coolant
60° ● 90mm ■ 85mm Motor 1/2HP(0.38kW) / 50W
▬ 85x90mm
L45° ● 135mm ■ 110mm Container Loads 10units / 20' 20units 40'
1550x745x1575mm
Packing Size
▬ 45x160mm
Blade Size 27x0.9x2460mm N.W. / G.W. 280kg / 330kg

● : Standard -- : Unable to Install
Operation Semi-Auto
Model E275DSA E275DSAV
Inverter Speed Control(DSAV) — — ●
Blade Broken Detection ● ●
Dual angle cuting60°(R)~45°(L) ● ●
Two Blade Speed Switch ● — —
Downfeed Hydraulic Control ● ●
Hydraulic Vise Clamping ● ●
Semi-Auto Type ● ●
Blade Tension Indicator ● ●

● Blade Tension
FHBS-E275DSA/DSAV Indicator Gauge
Specifications

90° ● 220mm ■ 215mm Blade 2 Speeds 50HZ 4P 72m/min
8P 36m/min
▬ 105x260mm
Speed
Inverter
45° ● 150mm ■ 145mm Blade Motor 20~85mpm
1.5HP(1.1kW)
▬ 70x155mm
Capacity (H X W) Hydraulic / Coolant
60° ● 90mm ■ 85mm Motor 1/2HP(0.38kW) / 32W
▬ 85x90mm
L45° ● 135mm ■ 110mm Container Loads 10units / 20' 20units / 40'
▬ 45x160mm
1550x750x1600mm
Packing Size
Blade Size 27x0.9x2460mm N.W. / G.W. 278kg / 310kg
