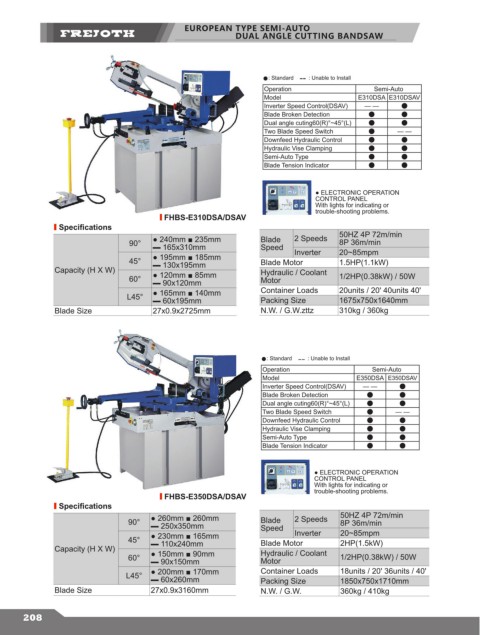

EUROPEAN TYPE SEMI-AUTO
DUAL ANGLE CUTTING BANDSAW

● : Standard -- : Unable to Install
Operation Semi-Auto
Model E310DSA E310DSAV
Inverter Speed Control(DSAV) — — ●
Blade Broken Detection ● ●
Dual angle cuting60(R)°~45°(L) ● ●
Two Blade Speed Switch ● — —
Downfeed Hydraulic Control ● ●
Hydraulic Vise Clamping ● ●
Semi-Auto Type ● ●
Blade Tension Indicator ● ●

● ELECTRONIC OPERATION
CONTROL PANEL
With lights for indicating or
trouble-shooting problems.
FHBS-E310DSA/DSAV
Specifications 50HZ 4P 72m/min

90° ● 240mm ■ 235mm Blade 2 Speeds 8P 36m/min
▬ 165x310mm
Speed
20~85mpm
Inverter
45° ● 195mm ■ 185mm Blade Motor 1.5HP(1.1kW)
▬ 130x195mm
Capacity (H X W) Hydraulic / Coolant
60° ● 120mm ■ 85mm Motor 1/2HP(0.38kW) / 50W
▬ 90x120mm
L45° ● 165mm ■ 140mm Container Loads 20units / 20' 40units 40'
1675x750x1640mm
Packing Size
▬ 60x195mm
Blade Size 27x0.9x2725mm N.W. / G.W.zttz 310kg / 360kg

● : Standard -- : Unable to Install
Operation Semi-Auto
Model E350DSA E350DSAV
Inverter Speed Control(DSAV) — — ●
Blade Broken Detection ● ●
Dual angle cuting60(R)°~45°(L) ● ●
Two Blade Speed Switch ● — —
Downfeed Hydraulic Control ● ●
Hydraulic Vise Clamping ● ●
Semi-Auto Type ● ●
Blade Tension Indicator ● ●

● ELECTRONIC OPERATION
CONTROL PANEL
With lights for indicating or
FHBS-E350DSA/DSAV trouble-shooting problems.
Specifications
90° ● 260mm ■ 260mm Blade 2 Speeds 50HZ 4P 72m/min
8P 36m/min
▬ 250x350mm
Speed
Inverter
45° ● 230mm ■ 165mm Blade Motor 20~85mpm
2HP(1.5kW)
▬ 110x240mm
Capacity (H X W) Hydraulic / Coolant
60° ● 150mm ■ 90mm Motor 1/2HP(0.38kW) / 50W
▬ 90x150mm
L45° ● 200mm ■ 170mm Container Loads 18units / 20' 36units / 40'
▬ 60x260mm
Packing Size
1850x750x1710mm
Blade Size 27x0.9x3160mm N.W. / G.W. 360kg / 410kg
