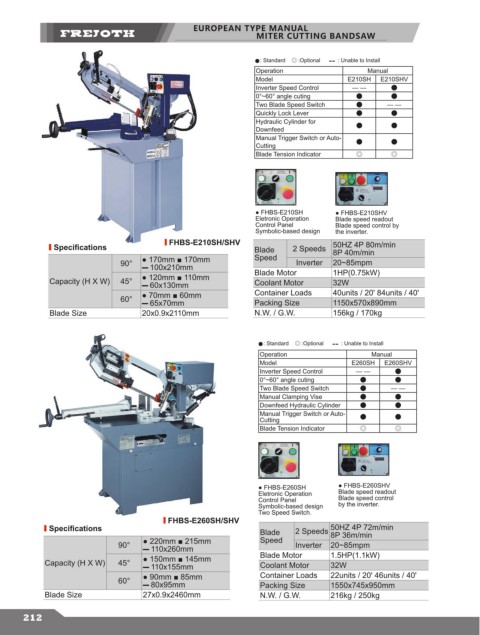

EUROPEAN TYPE MANUAL
MITER CUTTING BANDSAW

● : Standard ◎ :Optional -- : Unable to Install
Operation Manual
Model E210SH E210SHV
Inverter Speed Control — — ●
0°~60° angle cuting ● ●
Two Blade Speed Switch ● — —
Quickly Lock Lever ● ●
Hydraulic Cylinder for
Downfeed ● ●
Manual Trigger Switch or Auto-
Cutting ● ●
Blade Tension Indicator ◎ ◎

● FHBS-E210SH ● FHBS-E210SHV
Eletronic Operation Blade speed readout
Control Panel Blade speed control by
Symbolic-based design the inverter.
FHBS-E210SH/SHV
Specifications Blade 2 Speeds 50HZ 4P 80m/min
8P 40m/min
90° ● 170mm ■ 170mm Speed Inverter 20~85mpm
▬ 100x210mm
Capacity (H X W) 45° ● 120mm ■ 110mm Blade Motor 1HP(0.75kW)
32W
Coolant Motor
▬ 60x130mm
60° ● 70mm ■ 60mm Container Loads 40units / 20' 84units / 40'
Packing Size
▬ 65x70mm
1150x570x890mm
Blade Size 20x0.9x2110mm N.W. / G.W. 156kg / 170kg
● : Standard ◎ :Optional -- : Unable to Install
Operation Manual
Model E260SH E260SHV
Inverter Speed Control — — ●
0°~60° angle cuting ● ●
Two Blade Speed Switch ● — —
Manual Clamping Vise ● ●
Downfeed Hydraulic Cylinder ● ●
Manual Trigger Switch or Auto-
Cutting ● ●
Blade Tension Indicator ◎ ◎

● FHBS-E260SH ● FHBS-E260SHV
Eletronic Operation Blade speed readout
Control Panel Blade speed control
Symbolic-based design by the inverter.
Two Speed Switch.
FHBS-E260SH/SHV
Specifications Blade 2 Speeds 50HZ 4P 72m/min
8P 36m/min
90° ● 220mm ■ 215mm Speed Inverter 20~85mpm
▬ 110x260mm
Capacity (H X W) 45° ● 150mm ■ 145mm Blade Motor 1.5HP(1.1kW)
32W
Coolant Motor
▬ 110x155mm
60° ● 90mm ■ 85mm Container Loads 22units / 20' 46units / 40'
▬ 80x95mm
1550x745x950mm
Packing Size
Blade Size 27x0.9x2460mm N.W. / G.W. 216kg / 250kg
