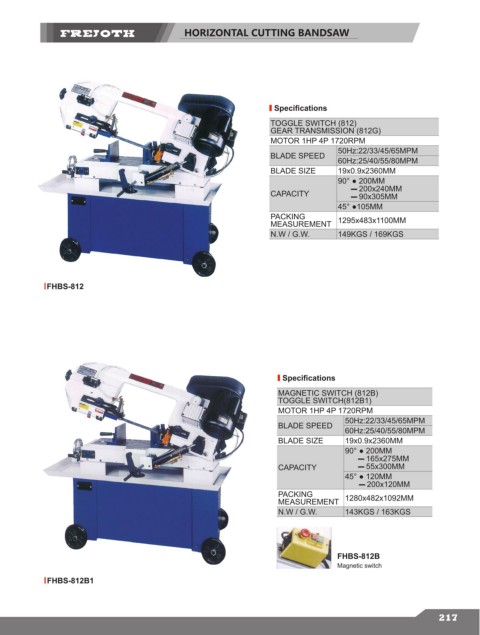

HORIZONTAL CUTTING BANDSAW
Specifications
TOGGLE SWITCH (812)
GEAR TRANSMISSION (812G)
MOTOR 1HP 4P 1720RPM
50Hz:22/33/45/65MPM
BLADE SPEED
60Hz:25/40/55/80MPM
BLADE SIZE 19x0.9x2360MM
90° ● 200MM
CAPACITY ▬ 200x240MM
▬ 90x305MM
45° ●105MM
PACKING
MEASUREMENT 1295x483x1100MM
N.W / G.W. 149KGS / 169KGS
FHBS-812
Specifications
MAGNETIC SWITCH (812B)
TOGGLE SWITCH(812B1)
MOTOR 1HP 4P 1720RPM
50Hz:22/33/45/65MPM
BLADE SPEED
60Hz:25/40/55/80MPM
BLADE SIZE 19x0.9x2360MM
90° ● 200MM
▬ 165x275MM
CAPACITY ▬ 55x300MM
45° ● 120MM
▬ 200x120MM
PACKING
MEASUREMENT 1280x482x1092MM
N.W / G.W. 143KGS / 163KGS
FHBS-812B
Magnetic switch
FHBS-812B1
