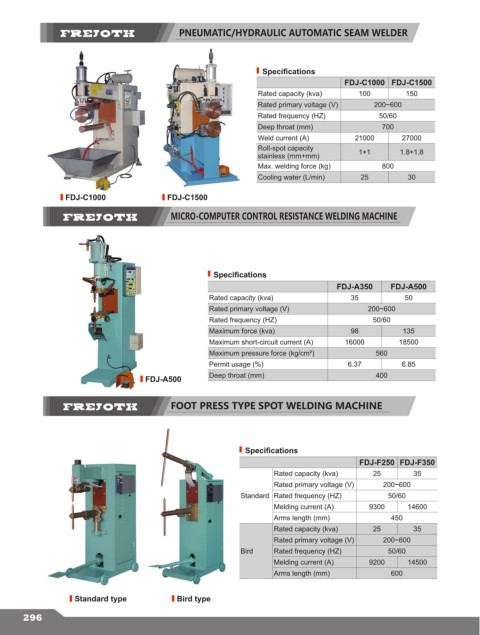

PNEUMATIC/HYDRAULIC AUTOMATIC SEAM WELDER

Specifications
FDJ-C1000 FDJ-C1500
Rated capacity (kva) 100 150
Rated primary voltage (V) 200~600
Rated frequency (HZ) 50/60
Deep throat (mm) 700
Weld current (A) 21000 27000
Roll-spot capacity 1+1 1.8+1.8
stainless (mm+mm)
Max. welding force (kg) 800
Cooling water (L/min) 25 30

FDJ-C1000 FDJ-C1500
MICRO-COMPUTER CONTROL RESISTANCE WELDING MACHINE

Specifications
FDJ-A350 FDJ-A500
Rated capacity (kva) 35 50
Rated primary voltage (V) 200~600
Rated frequency (HZ) 50/60
Maximum force (kva) 98 135
Maximum short-circuit current (A) 16000 18500
Maximum pressure force (kg/cm²) 560
Permit usage (%) 6.37 6.85

FDJ-A500 Deep throat (mm) 400

FOOT PRESS TYPE SPOT WELDING MACHINE

Specifications
FDJ-F250 FDJ-F350
Rated capacity (kva) 25 35
Rated primary voltage (V) 200~600
Standard Rated frequency (HZ) 50/60
Melding current (A) 9300 14600
Arms length (mm) 450
Rated capacity (kva) 25 35
Rated primary voltage (V) 200~600
Bird Rated frequency (HZ) 50/60
Melding current (A) 9200 14500
Arms length (mm) 600

Standard type Bird type
