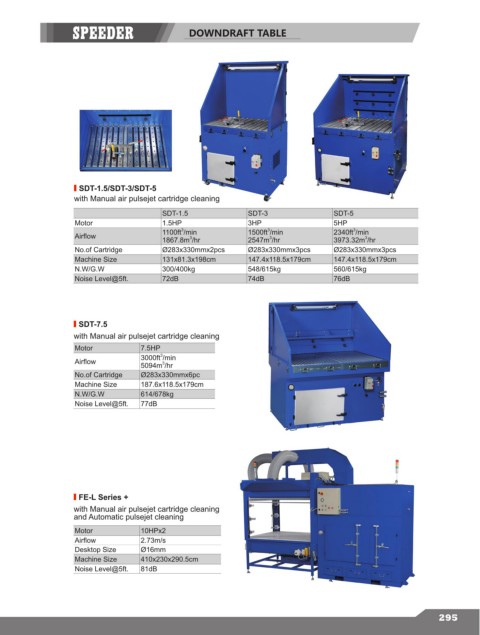

DOWNDRAFT TABLE

SDT-1.5/SDT-3/SDT-5
with Manual air pulsejet cartridge cleaning
SDT-1.5 SDT-3 SDT-5
Motor 1.5HP 3HP 5HP
1100ft /min 1500ft /min 2340ft /min
3
3
3
Airflow
3
1867.8m /hr 2547m /hr 3973.32m /hr
3
3
No.of Cartridge Ø283x330mmx2pcs Ø283x330mmx3pcs Ø283x330mmx3pcs
Machine Size 131x81.3x198cm 147.4x118.5x179cm 147.4x118.5x179cm
N.W/G.W 300/400kg 548/615kg 560/615kg
Noise Level@5ft. 72dB 74dB 76dB

SDT-7.5
with Manual air pulsejet cartridge cleaning
Motor 7.5HP
3
Airflow 3000ft /min
5094m /hr
3
No.of Cartridge Ø283x330mmx6pc
Machine Size 187.6x118.5x179cm
N.W/G.W 614/678kg
Noise Level@5ft. 77dB

FE-L Series +
with Manual air pulsejet cartridge cleaning
and Automatic pulsejet cleaning
Motor 10HPx2
Airflow 2.73m/s
Desktop Size Ø16mm
Machine Size 410x230x290.5cm
Noise Level@5ft. 81dB

295
