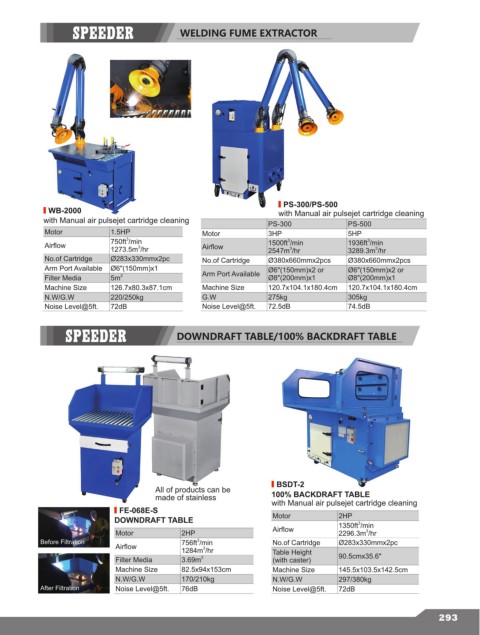

WELDING FUME EXTRACTOR

PS-300/PS-500
WB-2000 with Manual air pulsejet cartridge cleaning
with Manual air pulsejet cartridge cleaning PS-300 PS-500
Motor 1.5HP Motor 3HP 5HP
750ft /min 1500ft /min 1936ft /min
3
3
3
Airflow Airflow
1273.5m /hr 2547m /hr 3289.3m /hr
3
3
3
No.of Cartridge Ø283x330mmx2pc No.of Cartridge Ø380x660mmx2pcs Ø380x660mmx2pcs
Arm Port Available Ø6"(150mm)x1 Ø6"(150mm)x2 or Ø6"(150mm)x2 or
Filter Media 5m 2 Arm Port Available Ø8"(200mm)x1 Ø8"(200mm)x1
Machine Size 126.7x80.3x87.1cm Machine Size 120.7x104.1x180.4cm 120.7x104.1x180.4cm
N.W/G.W 220/250kg G.W 275kg 305kg
Noise Level@5ft. 72dB Noise Level@5ft. 72.5dB 74.5dB
DOWNDRAFT TABLE/100% BACKDRAFT TABLE

BSDT-2
All of products can be
made of stainless 100% BACKDRAFT TABLE
with Manual air pulsejet cartridge cleaning
FE-068E-S
DOWNDRAFT TABLE Motor 2HP 3
Airflow 1350ft /min
Motor 2HP 2296.3m /hr
3
Before Filtration 756ft /min No.of Cartridge Ø283x330mmx2pc
3
Airflow
1284m /hr Table Height
3
Filter Media 3.69m 2 (with caster) 90.5cmx35.6"
Machine Size 82.5x94x153cm Machine Size 145.5x103.5x142.5cm
N.W/G.W 170/210kg N.W/G.W 297/380kg
After Filtration Noise Level@5ft. 76dB Noise Level@5ft. 72dB
