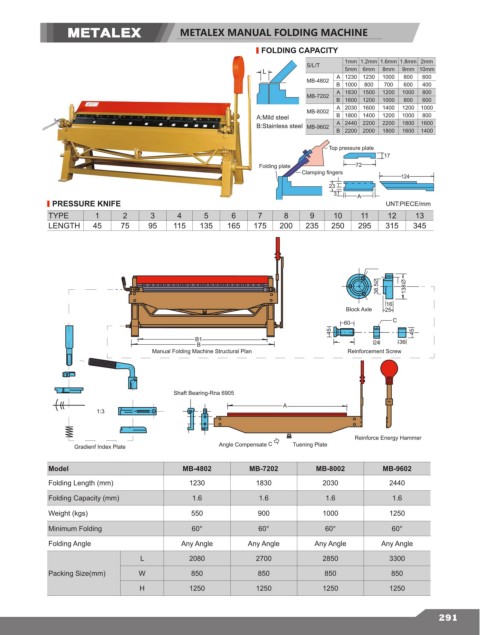

METALEX MANUAL FOLDING MACHINE

FOLDING CAPACITY
1mm 1.2mm 1.6mm 1.8mm 2mm
S/L/T
L 5mm 6mm 8mm 9mm 10mm
MB-4802 A 1230 1230 1000 800 600
B 1000 800 700 600 400
A 1830 1500 1200 1000 800
MB-7202
B 1600 1200 1000 800 600
A 2030 1600 1400 1200 1000
MB-8002
A:Mild steel B 1800 1400 1200 1000 800
B:Stainless steel MB-9602 A 2440 2200 2200 1800 1600
B 2200 2000 1800 1600 1400
Top pressure plate
17
Folding plate 72
Clamping fingers
124
23
3 A
PRESSURE KNIFE UNT:PIECE/mm
TYPE 1 2 3 4 5 6 7 8 9 10 11 12 13
LENGTH 45 75 95 115 135 165 175 200 235 250 295 315 345

38.5 138

16
Block Axle 25
60 C
45 45
B1
B 24 36
Manual Folding Machine Structural Plan Reinforcement Screw

Shaft Bearing-Rna 6905
A
1:3

Reinforce Energy Hammer
Gradienf Index Plate Angle Compensate C Tuening Plate

Model MB-4802 MB-7202 MB-8002 MB-9602
Folding Length (mm) 1230 1830 2030 2440

Folding Capacity (mm) 1.6 1.6 1.6 1.6
Weight (kgs) 550 900 1000 1250

Minimum Folding 60° 60° 60° 60°
Folding Angle Any Angle Any Angle Any Angle Any Angle
L 2080 2700 2850 3300

Packing Size(mm) W 850 850 850 850
H 1250 1250 1250 1250

291
