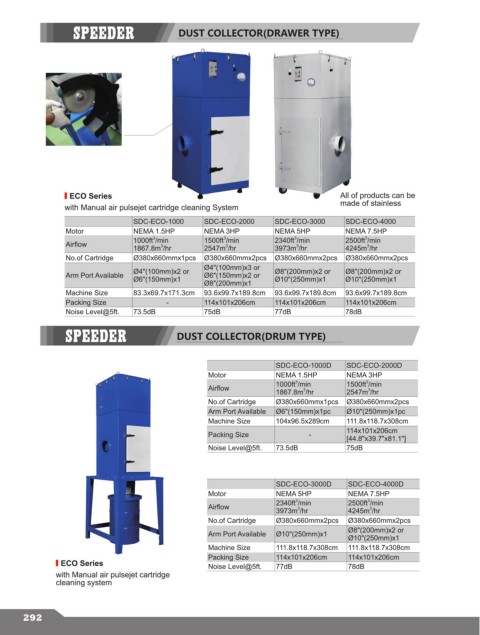

DUST COLLECTOR(DRAWER TYPE)

ECO Series All of products can be
with Manual air pulsejet cartridge cleaning System made of stainless
SDC-ECO-1000 SDC-ECO-2000 SDC-ECO-3000 SDC-ECO-4000
Motor NEMA 1.5HP NEMA 3HP NEMA 5HP NEMA 7.5HP
3
3
3
3
Airflow 1000ft /min 1500ft /min 2340ft /min 2500ft /min
3
2547m /hr
3
3
3
4245m /hr
3973m /hr
1867.8m /hr
No.of Cartridge Ø380x660mmx1pcs Ø380x660mmx2pcs Ø380x660mmx2pcs Ø380x660mmx2pcs
Ø6"(150mm)x2 or
Arm Port Available Ø4"(100mm)x2 or Ø4"(100mm)x3 or Ø8"(200mm)x2 or Ø8"(200mm)x2 or
Ø6"(150mm)x1
Ø10"(250mm)x1
Ø10"(250mm)x1
Ø8"(200mm)x1
Machine Size 83.3x69.7x171.3cm 93.6x99.7x189.8cm 93.6x99.7x189.8cm 93.6x99.7x189.8cm
Packing Size - 114x101x206cm 114x101x206cm 114x101x206cm
Noise Level@5ft. 73.5dB 75dB 77dB 78dB
DUST COLLECTOR(DRUM TYPE)
SDC-ECO-1000D SDC-ECO-2000D
Motor NEMA 1.5HP NEMA 3HP
3
3
Airflow 1000ft /min 1500ft /min
3
1867.8m /hr
2547m /hr
3
No.of Cartridge Ø380x660mmx1pcs Ø380x660mmx2pcs
Arm Port Available Ø6"(150mm)x1pc Ø10"(250mm)x1pc
Machine Size 104x96.5x289cm 111.8x118.7x308cm
114x101x206cm
Packing Size -
[44.8"x39.7"x81.1"]
Noise Level@5ft. 73.5dB 75dB
SDC-ECO-3000D SDC-ECO-4000D
Motor NEMA 5HP NEMA 7.5HP
3
3
Airflow 2340ft /min 2500ft /min
3
4245m /hr
3973m /hr
3
No.of Cartridge Ø380x660mmx2pcs Ø380x660mmx2pcs
Ø8"(200mm)x2 or
Arm Port Available Ø10"(250mm)x1
Ø10"(250mm)x1
Machine Size 111.8x118.7x308cm 111.8x118.7x308cm
Packing Size 114x101x206cm 114x101x206cm
ECO Series Noise Level@5ft. 77dB 78dB
with Manual air pulsejet cartridge
cleaning system
