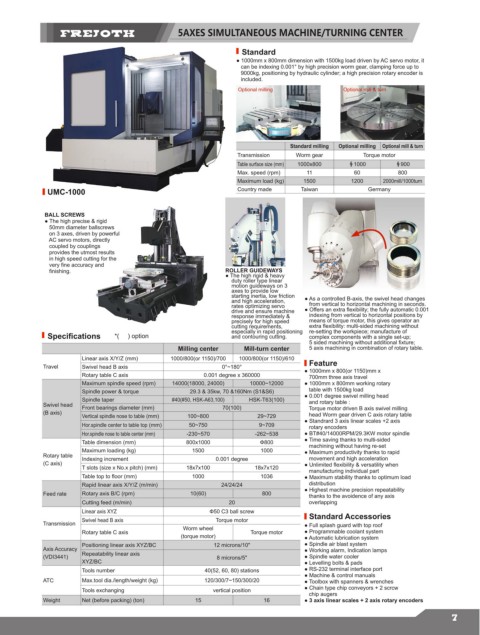

5AXES SIMULTANEOUS MACHINE/TURNING CENTER

Standard
● 1000mm x 800mm dimension with 1500kg load driven by AC servo motor, it
can be indexing 0.001° by high precision worm gear, clamping force up to
9000kg, positioning by hydraulic cylinder; a high precision rotary encoder is
included.
Optional milling Optional mill & turn

Standard milling Optional milling Optional mill & turn
Transmission Worm gear Torque motor
Table surface size (mm) 1000x800 ∮1000 ∮900
Max. speed (rpm) 11 60 800
Maximum load (kg) 1500 1200 2000mill/1000turn
UMC-1000 Country made Taiwan Germany

BALL SCREWS
● The high precise & rigid
50mm diameter ballscrews
on 3 axes, driven by powerful
AC servo motors, directly
coupled by couplings
provides the utmost results
in high speed cutting for the
very fine accuracy and
finishing. ROLLER GUIDEWAYS
● The high rigid & heavy
duty roller type linear
motion guideways on 3
axes to provide low
starting inertia, low friction ● As a controlled B-axis, the swivel head changes
and high acceleration,
rates optimizing servo from vertical to horizontal machining in seconds.
drive and ensure machine ● Offers an extra flexibility; the fully automatic 0.001
response immediately & indexing from vertical to horizontal positions by
precisely for high speed means of torque motor, this gives operator an
cutting requirements, extra flexibility: multi-sided machining without
Specifications *( ) option especially in rapid positioning re-setting the workpiece; manufacture of
complex components with a single set-up;
and contouring cutting.
5 sided machining without additional fixture;
Milling center Mill-turn center 5 axis machining in combination of rotary table.
Linear axis X/Y/Z (mm) 1000/800(or 1150)/700 1000/800(or 1150)/610
Travel Swivel head B axis 0°~180° Feature
Rotary table C axis 0.001 degree x 360000 ● 1000mm x 800(or 1150)mm x
700mm three axis travel
Maximum spindle speed (rpm) 14000(18000, 24000) 10000~12000 ● 1000mm x 800mm working rotary
Spindle power & torque 29.3 & 35kw, 70 &160Nm (S1&S6) table with 1500kg load
Spindle taper #40(#50, HSK-A63,100) HSK-T63(100) ● 0.001 degree swivel milling head
Swivel head Front bearings diameter (mm) 70(100) and rotary table :
Torque motor driven B axis swivel milling
(B axis)
Vertical spindle nose to table (mm) 100~800 29~729 head Worm gear driven C axis rotary table
Hor.spindle center to table top (mm) 50~750 9~709 ● Standrard 3 axis linear scales +2 axis
rotary encoders
Hor.spindle nose to table center (mm) -230~570 -262~538 ● BT#40/14000RPM/29.3KW motor spindle
Table dimension (mm) 800x1000 Ф800 ● Time saving thanks to multi-sided
machining without having re-set
Maximum loading (kg) 1500 1000 ● Maximum productivity thanks to rapid
Rotary table Indexing increment 0.001 degree movement and high acceleration
(C axis) ● Unlimited flexibility & versatility when
T slots (size x No.x pitch) (mm) 18x7x100 18x7x120 manufacturing individual part
Table top to floor (mm) 1000 1036 ● Maximum stability thanks to optimum load
Rapid linear axis X/Y/Z (m/min) 24/24/24 distribution
Feed rate Rotary axis B/C (rpm) 10(60) 800 ● Highest machine precision repeatability
thanks to the avoidence of any axis
Cutting feed (m/min) 20 overlapping
Linear axis XYZ Ф50 C3 ball screw Standard Accessories
● Full splash guard with top roof Transmission Swivel head B axis Torque motor ● Full splash guard with top roof
● Programmable coolant system Rotary table C axis Worm wheel Torque motor ● Programmable coolant system
● Automatic lubrication system (torque motor) ● Automatic lubrication system
● Spindle air blast system Positioning linear axis XYZ/BC 12 microns/10" ● Spindle air blast system
● Working alarm, Indication lamps Axis Accuracy ● Working alarm, Indication lamps
● Spindle water cooler (VDI3441) Repeatability linear axis 8 microns/5" ● Spindle water cooler
● Levelling bolts & pads XYZ/BC ● Levelling bolts & pads
● RS-232 terminal interface port ● RS-232 terminal interface port
● Machine & control manuals Tools number 40(52, 60, 80) stations ● Machine & control manuals
● Toolbox with spanners & wrenches ATC Max.tool dia./length/weight (kg) 120/300/7~150/300/20 ● Toolbox with spanners & wrenches
● Chain type chip conveyors + 2 scrcw ● Chain type chip conveyors + 2 scrcw
chip augers Tools exchanging vertical position chip augers
● 3 axis linear scales + 2 axis rotary encoders Weight Net (before packing) (ton) 15 16 ● 3 axis linear scales + 2 axis rotary encoders
