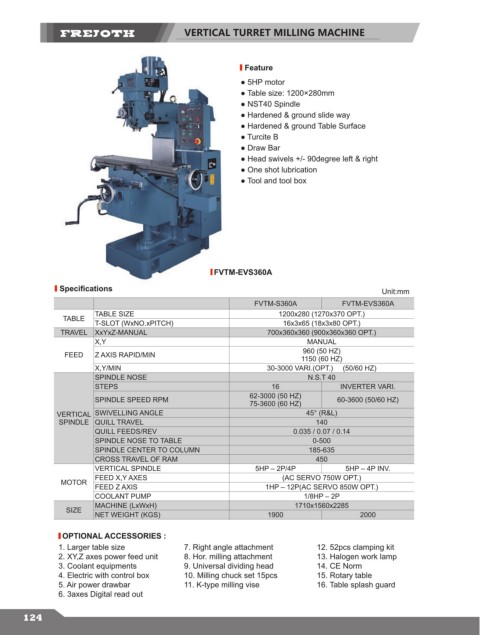

VERTICAL TURRET MILLING MACHINE

Feature
● 5HP motor
● Table size: 1200×280mm
● NST40 Spindle
● Hardened & ground slide way
● Hardened & ground Table Surface
● Turcite B
● Draw Bar
● Head swivels +/- 90degree left & right
● One shot lubrication
● Tool and tool box

FVTM-EVS360A

Specifications Unit:mm

FVTM-S360A FVTM-EVS360A
TABLE SIZE 1200x280 (1270x370 OPT.)
TABLE
T-SLOT (WxNO.xPITCH) 16x3x65 (18x3x80 OPT.)
TRAVEL XxYxZ-MANUAL 700x360x360 (900x360x360 OPT.)
X,Y MANUAL
960 (50 HZ)
FEED Z AXIS RAPID/MIN
1150 (60 HZ)
X,Y/MIN 30-3000 VARI.(OPT.) (50/60 HZ)
SPINDLE NOSE N.S.T 40
STEPS 16 INVERTER VARI.
SPINDLE SPEED RPM 62-3000 (50 HZ) 60-3600 (50/60 HZ)
75-3600 (60 HZ)
VERTICAL SWIVELLING ANGLE 45° (R&L)
SPINDLE QUILL TRAVEL 140
QUILL FEEDS/REV 0.035 / 0.07 / 0.14
SPINDLE NOSE TO TABLE 0-500
SPINDLE CENTER TO COLUMN 185-635
CROSS TRAVEL OF RAM 450
VERTICAL SPINDLE 5HP – 2P/4P 5HP – 4P INV.
FEED X,Y AXES (AC SERVO 750W OPT.)
MOTOR
FEED Z AXIS 1HP – 12P(AC SERVO 850W OPT.)
COOLANT PUMP 1/8HP – 2P
MACHINE (LxWxH) 1710x1560x2285
SIZE
NET WEIGHT (KGS) 1900 2000

OPTIONAL ACCESSORIES :
1. Larger table size 7. Right angle attachment 12. 52pcs clamping kit
2. XY,Z axes power feed unit 8. Hor. milling attachment 13. Halogen work lamp
3. Coolant equipments 9. Universal dividing head 14. CE Norm
4. Electric with control box 10. Milling chuck set 15pcs 15. Rotary table
5. Air power drawbar 11. K-type milling vise 16. Table splash guard
6. 3axes Digital read out
