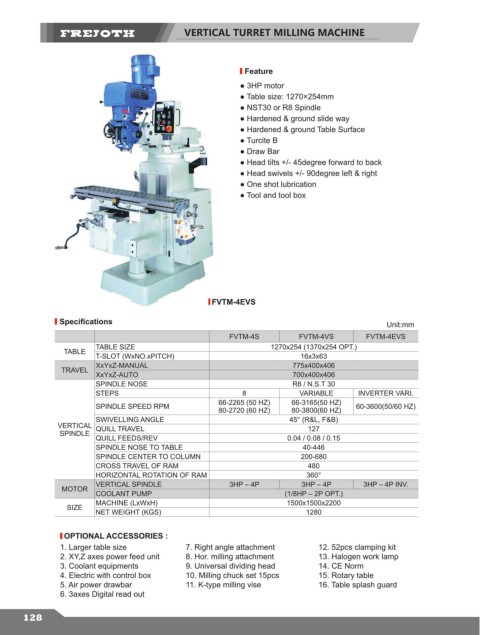

VERTICAL TURRET MILLING MACHINE

Feature

● 3HP motor
● Table size: 1270×254mm
● NST30 or R8 Spindle
● Hardened & ground slide way
● Hardened & ground Table Surface
● Turcite B
● Draw Bar
● Head tilts +/- 45degree forward to back
● Head swivels +/- 90degree left & right
● One shot lubrication
● Tool and tool box

FVTM-4EVS

Specifications Unit:mm

FVTM-4S FVTM-4VS FVTM-4EVS
TABLE SIZE 1270x254 (1370x254 OPT.)
TABLE
T-SLOT (WxNO.xPITCH) 16x3x63
XxYxZ-MANUAL 775x400x406
TRAVEL
XxYxZ-AUTO 700x400x406
SPINDLE NOSE R8 / N.S.T 30
STEPS 8 VARIABLE INVERTER VARI.
66-2265 (50 HZ) 66-3165(50 HZ)
SPINDLE SPEED RPM 60-3600(50/60 HZ)
80-2720 (60 HZ) 80-3800(60 HZ)
SWIVELLING ANGLE 45° (R&L, F&B)
VERTICAL QUILL TRAVEL 127
SPINDLE
QUILL FEEDS/REV 0.04 / 0.08 / 0.15
SPINDLE NOSE TO TABLE 40-446
SPINDLE CENTER TO COLUMN 200-680
CROSS TRAVEL OF RAM 480
HORIZONTAL ROTATION OF RAM 360°
VERTICAL SPINDLE 3HP – 4P 3HP – 4P 3HP – 4P INV.
MOTOR
COOLANT PUMP (1/8HP – 2P OPT.)
MACHINE (LxWxH) 1500x1500x2200
SIZE
NET WEIGHT (KGS) 1280

OPTIONAL ACCESSORIES :
1. Larger table size 7. Right angle attachment 12. 52pcs clamping kit
2. XY,Z axes power feed unit 8. Hor. milling attachment 13. Halogen work lamp
3. Coolant equipments 9. Universal dividing head 14. CE Norm
4. Electric with control box 10. Milling chuck set 15pcs 15. Rotary table
5. Air power drawbar 11. K-type milling vise 16. Table splash guard
6. 3axes Digital read out
