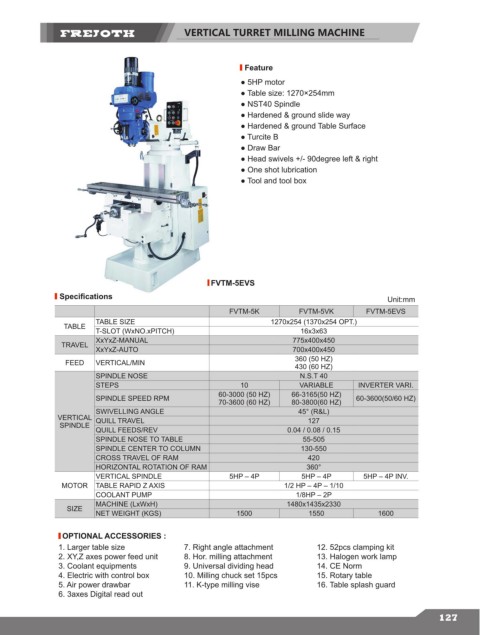

VERTICAL TURRET MILLING MACHINE

Feature
● 5HP motor
● Table size: 1270×254mm
● NST40 Spindle
● Hardened & ground slide way
● Hardened & ground Table Surface
● Turcite B
● Draw Bar
● Head swivels +/- 90degree left & right
● One shot lubrication
● Tool and tool box

FVTM-5EVS
Specifications Unit:mm

FVTM-5K FVTM-5VK FVTM-5EVS
TABLE SIZE 1270x254 (1370x254 OPT.)
TABLE
T-SLOT (WxNO.xPITCH) 16x3x63
XxYxZ-MANUAL 775x400x450
TRAVEL
XxYxZ-AUTO 700x400x450
360 (50 HZ)
FEED VERTICAL/MIN
430 (60 HZ)
SPINDLE NOSE N.S.T 40
STEPS 10 VARIABLE INVERTER VARI.
SPINDLE SPEED RPM 60-3000 (50 HZ) 66-3165(50 HZ) 60-3600(50/60 HZ)
80-3800(60 HZ)
70-3600 (60 HZ)
SWIVELLING ANGLE 45° (R&L)
VERTICAL QUILL TRAVEL 127
SPINDLE
QUILL FEEDS/REV 0.04 / 0.08 / 0.15
SPINDLE NOSE TO TABLE 55-505
SPINDLE CENTER TO COLUMN 130-550
CROSS TRAVEL OF RAM 420
HORIZONTAL ROTATION OF RAM 360°
VERTICAL SPINDLE 5HP – 4P 5HP – 4P 5HP – 4P INV.
MOTOR TABLE RAPID Z AXIS 1/2 HP – 4P – 1/10
COOLANT PUMP 1/8HP – 2P
MACHINE (LxWxH) 1480x1435x2330
SIZE
NET WEIGHT (KGS) 1500 1550 1600

OPTIONAL ACCESSORIES :
1. Larger table size 7. Right angle attachment 12. 52pcs clamping kit
2. XY,Z axes power feed unit 8. Hor. milling attachment 13. Halogen work lamp
3. Coolant equipments 9. Universal dividing head 14. CE Norm
4. Electric with control box 10. Milling chuck set 15pcs 15. Rotary table
5. Air power drawbar 11. K-type milling vise 16. Table splash guard
6. 3axes Digital read out
