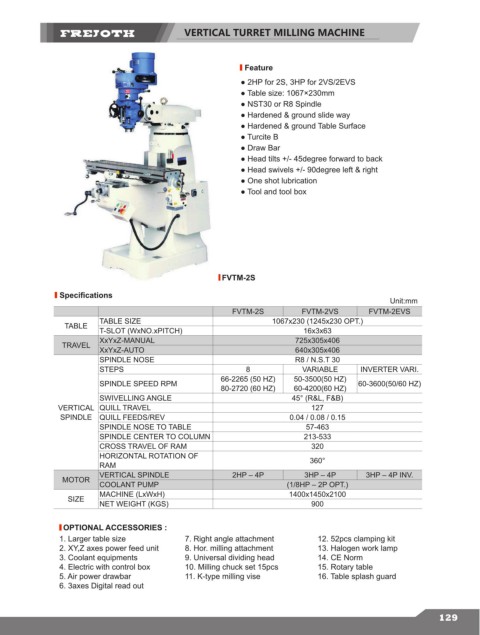

VERTICAL TURRET MILLING MACHINE

Feature
● 2HP for 2S, 3HP for 2VS/2EVS
● Table size: 1067×230mm
● NST30 or R8 Spindle
● Hardened & ground slide way
● Hardened & ground Table Surface
● Turcite B
● Draw Bar
● Head tilts +/- 45degree forward to back
● Head swivels +/- 90degree left & right
● One shot lubrication
● Tool and tool box

FVTM-2S

Specifications
Unit:mm
FVTM-2S FVTM-2VS FVTM-2EVS
TABLE SIZE 1067x230 (1245x230 OPT.)
TABLE
T-SLOT (WxNO.xPITCH) 16x3x63
XxYxZ-MANUAL 725x305x406
TRAVEL
XxYxZ-AUTO 640x305x406
SPINDLE NOSE R8 / N.S.T 30
STEPS 8 VARIABLE INVERTER VARI.
66-2265 (50 HZ) 50-3500(50 HZ)
SPINDLE SPEED RPM 60-3600(50/60 HZ)
80-2720 (60 HZ) 60-4200(60 HZ)
SWIVELLING ANGLE 45° (R&L, F&B)
VERTICAL QUILL TRAVEL 127
SPINDLE QUILL FEEDS/REV 0.04 / 0.08 / 0.15
SPINDLE NOSE TO TABLE 57-463
SPINDLE CENTER TO COLUMN 213-533
CROSS TRAVEL OF RAM 320
HORIZONTAL ROTATION OF 360°
RAM
VERTICAL SPINDLE 2HP – 4P 3HP – 4P 3HP – 4P INV.
MOTOR
COOLANT PUMP (1/8HP – 2P OPT.)
MACHINE (LxWxH) 1400x1450x2100
SIZE
NET WEIGHT (KGS) 900

OPTIONAL ACCESSORIES :
1. Larger table size 7. Right angle attachment 12. 52pcs clamping kit
2. XY,Z axes power feed unit 8. Hor. milling attachment 13. Halogen work lamp
3. Coolant equipments 9. Universal dividing head 14. CE Norm
4. Electric with control box 10. Milling chuck set 15pcs 15. Rotary table
5. Air power drawbar 11. K-type milling vise 16. Table splash guard
6. 3axes Digital read out
