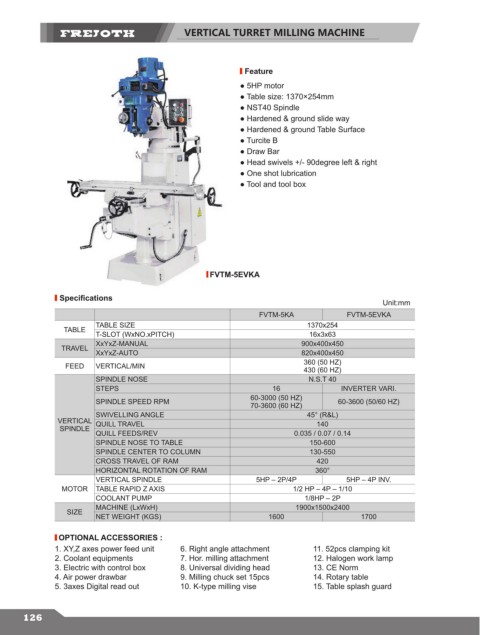

VERTICAL TURRET MILLING MACHINE

Feature

● 5HP motor
● Table size: 1370×254mm
● NST40 Spindle
● Hardened & ground slide way
● Hardened & ground Table Surface
● Turcite B
● Draw Bar
● Head swivels +/- 90degree left & right
● One shot lubrication
● Tool and tool box

FVTM-5EVKA

Specifications
Unit:mm
FVTM-5KA FVTM-5EVKA
TABLE SIZE 1370x254
TABLE
T-SLOT (WxNO.xPITCH) 16x3x63
XxYxZ-MANUAL 900x400x450
TRAVEL
XxYxZ-AUTO 820x400x450
360 (50 HZ)
FEED VERTICAL/MIN
430 (60 HZ)
SPINDLE NOSE N.S.T 40
STEPS 16 INVERTER VARI.
60-3000 (50 HZ)
SPINDLE SPEED RPM 60-3600 (50/60 HZ)
70-3600 (60 HZ)
SWIVELLING ANGLE 45° (R&L)
VERTICAL QUILL TRAVEL 140
SPINDLE
QUILL FEEDS/REV 0.035 / 0.07 / 0.14
SPINDLE NOSE TO TABLE 150-600
SPINDLE CENTER TO COLUMN 130-550
CROSS TRAVEL OF RAM 420
HORIZONTAL ROTATION OF RAM 360°
VERTICAL SPINDLE 5HP – 2P/4P 5HP – 4P INV.
MOTOR TABLE RAPID Z AXIS 1/2 HP – 4P – 1/10
COOLANT PUMP 1/8HP – 2P
MACHINE (LxWxH) 1900x1500x2400
SIZE
NET WEIGHT (KGS) 1600 1700

OPTIONAL ACCESSORIES :
1. XY,Z axes power feed unit 6. Right angle attachment 11. 52pcs clamping kit
2. Coolant equipments 7. Hor. milling attachment 12. Halogen work lamp
3. Electric with control box 8. Universal dividing head 13. CE Norm
4. Air power drawbar 9. Milling chuck set 15pcs 14. Rotary table
5. 3axes Digital read out 10. K-type milling vise 15. Table splash guard
