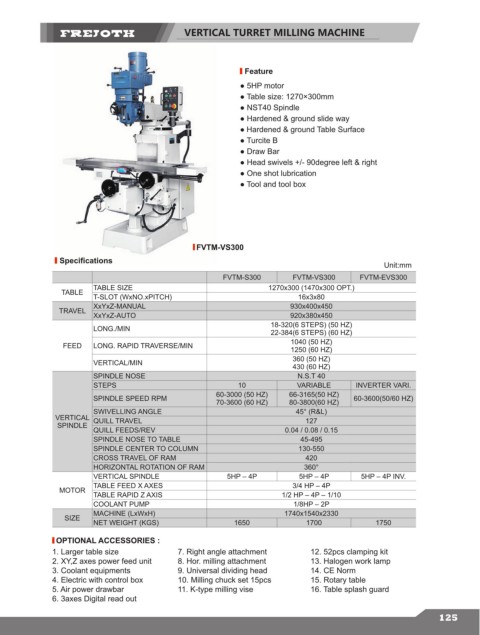

VERTICAL TURRET MILLING MACHINE

Feature

● 5HP motor
● Table size: 1270×300mm
● NST40 Spindle
● Hardened & ground slide way
● Hardened & ground Table Surface
● Turcite B
● Draw Bar
● Head swivels +/- 90degree left & right
● One shot lubrication
● Tool and tool box

FVTM-VS300

Specifications
Unit:mm
FVTM-S300 FVTM-VS300 FVTM-EVS300
TABLE SIZE 1270x300 (1470x300 OPT.)
TABLE
T-SLOT (WxNO.xPITCH) 16x3x80
XxYxZ-MANUAL 930x400x450
TRAVEL
XxYxZ-AUTO 920x380x450
LONG./MIN 18-320(6 STEPS) (50 HZ)
22-384(6 STEPS) (60 HZ)
FEED LONG. RAPID TRAVERSE/MIN 1040 (50 HZ)
1250 (60 HZ)
360 (50 HZ)
VERTICAL/MIN
430 (60 HZ)
SPINDLE NOSE N.S.T 40
STEPS 10 VARIABLE INVERTER VARI.
60-3000 (50 HZ) 66-3165(50 HZ)
SPINDLE SPEED RPM 70-3600 (60 HZ) 80-3800(60 HZ) 60-3600(50/60 HZ)
SWIVELLING ANGLE 45° (R&L)
VERTICAL QUILL TRAVEL 127
SPINDLE
QUILL FEEDS/REV 0.04 / 0.08 / 0.15
SPINDLE NOSE TO TABLE 45-495
SPINDLE CENTER TO COLUMN 130-550
CROSS TRAVEL OF RAM 420
HORIZONTAL ROTATION OF RAM 360°
VERTICAL SPINDLE 5HP – 4P 5HP – 4P 5HP – 4P INV.
TABLE FEED X AXES 3/4 HP – 4P
MOTOR
TABLE RAPID Z AXIS 1/2 HP – 4P – 1/10
COOLANT PUMP 1/8HP – 2P
MACHINE (LxWxH) 1740x1540x2330
SIZE
NET WEIGHT (KGS) 1650 1700 1750
OPTIONAL ACCESSORIES :
1. Larger table size 7. Right angle attachment 12. 52pcs clamping kit
2. XY,Z axes power feed unit 8. Hor. milling attachment 13. Halogen work lamp
3. Coolant equipments 9. Universal dividing head 14. CE Norm
4. Electric with control box 10. Milling chuck set 15pcs 15. Rotary table
5. Air power drawbar 11. K-type milling vise 16. Table splash guard
6. 3axes Digital read out
