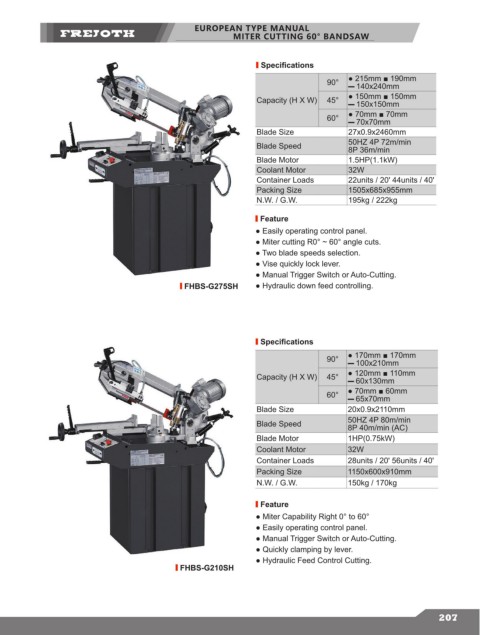

EUROPEAN TYPE MANUAL
MITER CUTTING 60° BANDSAW

Specifications
90° ● 215mm ■ 190mm
▬ 140x240mm
Capacity (H X W) 45° ● 150mm ■ 150mm
▬ 150x150mm
60° ● 70mm ■ 70mm
▬ 70x70mm
Blade Size 27x0.9x2460mm
Blade Speed 50HZ 4P 72m/min
8P 36m/min
Blade Motor 1.5HP(1.1kW)
Coolant Motor 32W
Container Loads 22units / 20' 44units / 40'
Packing Size 1505x685x955mm
N.W. / G.W. 195kg / 222kg

Feature
● Easily operating control panel.
● Miter cutting R0° ~ 60° angle cuts.
● Two blade speeds selection.
● Vise quickly lock lever.
● Manual Trigger Switch or Auto-Cutting.
FHBS-G275SH ● Hydraulic down feed controlling.

Specifications
90° ● 170mm ■ 170mm
▬ 100x210mm
Capacity (H X W) 45° ● 120mm ■ 110mm
▬ 60x130mm
60° ● 70mm ■ 60mm
▬ 65x70mm
Blade Size 20x0.9x2110mm

Blade Speed 50HZ 4P 80m/min
8P 40m/min (AC)
Blade Motor 1HP(0.75kW)
Coolant Motor 32W
Container Loads 28units / 20' 56units / 40'
Packing Size 1150x600x910mm
N.W. / G.W. 150kg / 170kg

Feature
● Miter Capability Right 0° to 60°
● Easily operating control panel.
● Manual Trigger Switch or Auto-Cutting.
● Quickly clamping by lever.
● Hydraulic Feed Control Cutting.
FHBS-G210SH

207
