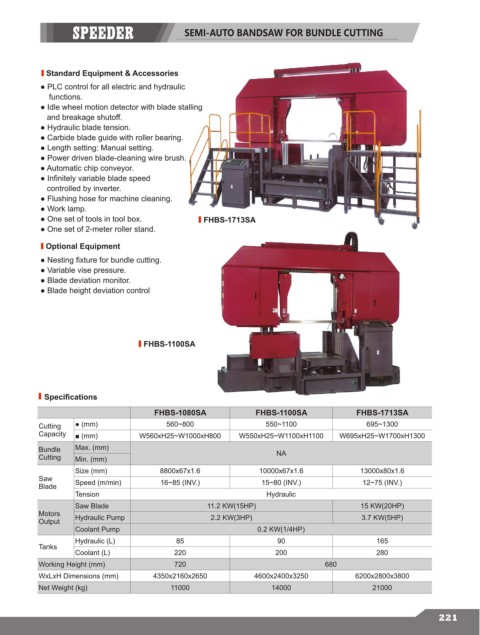

SEMI-AUTO BANDSAW FOR BUNDLE CUTTING

Standard Equipment & Accessories
● PLC control for all electric and hydraulic
functions.
● Idle wheel motion detector with blade stalling
and breakage shutoff.
● Hydraulic blade tension.
● Carbide blade guide with roller bearing.
● Length setting: Manual setting.
● Power driven blade-cleaning wire brush.
● Automatic chip conveyor.
● Infinitely variable blade speed
controlled by inverter.
● Flushing hose for machine cleaning.
● Work lamp.
● One set of tools in tool box. FHBS-1713SA
● One set of 2-meter roller stand.
Optional Equipment

● Nesting fixture for bundle cutting.
● Variable vise pressure.
● Blade deviation monitor.
● Blade height deviation control

FHBS-1100SA

Specifications

FHBS-1080SA FHBS-1100SA FHBS-1713SA
Cutting ● (mm) 560~800 550~1100 695~1300
Capacity ■ (mm) W560xH25~W1000xH800 W550xH25~W1100xH1100 W695xH25~W1700xH1300

Bundle Max. (mm) NA
Cutting Min. (mm)
Size (mm) 8800x67x1.6 10000x67x1.6 13000x80x1.6
Saw Speed (m/min) 16~85 (INV.) 15~80 (INV.) 12~75 (INV.)
Blade
Tension Hydraulic
Saw Blade 11.2 KW(15HP) 15 KW(20HP)
Motors Hydraulic Pump 2.2 KW(3HP) 3.7 KW(5HP)
Output
Coolant Pump 0.2 KW(1/4HP)
Hydraulic (L) 85 90 165
Tanks
Coolant (L) 220 200 280
Working Height (mm) 720 680
WxLxH Dimensions (mm) 4350x2160x2650 4600x2400x3250 6200x2800x3800
Net Weight (kg) 11000 14000 21000
