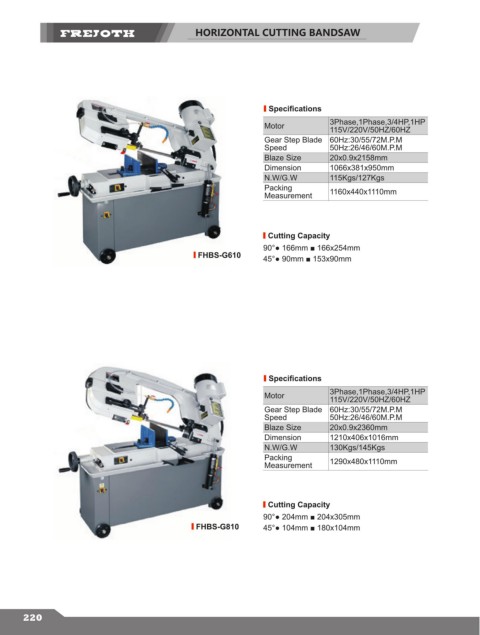

HORIZONTAL CUTTING BANDSAW
Specifications
Motor 3Phase,1Phase,3/4HP,1HP
115V/220V/50HZ/60HZ
Gear Step Blade 60Hz:30/55/72M.P.M
Speed 50Hz:26/46/60M.P.M
Blaze Size 20x0.9x2158mm
Dimension 1066x381x950mm
N.W/G.W 115Kgs/127Kgs
Packing 1160x440x1110mm
Measurement
Cutting Capacity
90°● 166mm ■ 166x254mm
FHBS-G610 45°● 90mm ■ 153x90mm
Specifications
Motor 3Phase,1Phase,3/4HP,1HP
115V/220V/50HZ/60HZ
Gear Step Blade 60Hz:30/55/72M.P.M
Speed 50Hz:26/46/60M.P.M
Blaze Size 20x0.9x2360mm
Dimension 1210x406x1016mm
N.W/G.W 130Kgs/145Kgs
Packing 1290x480x1110mm
Measurement
Cutting Capacity
90°● 204mm ■ 204x305mm
FHBS-G810 45°● 104mm ■ 180x104mm
