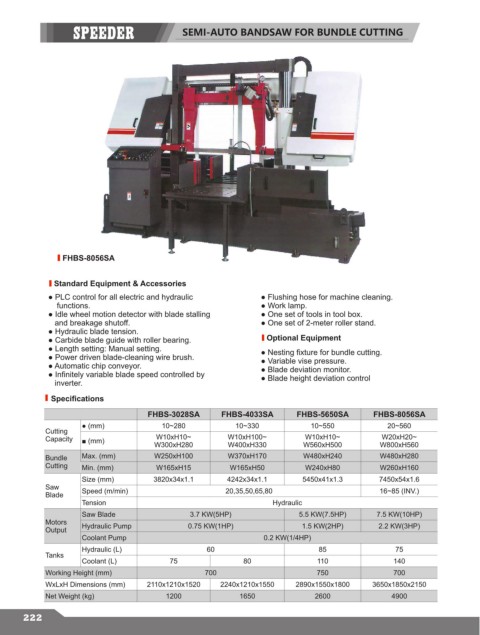

SEMI-AUTO BANDSAW FOR BUNDLE CUTTING

FHBS-8056SA

Standard Equipment & Accessories
● PLC control for all electric and hydraulic ● Flushing hose for machine cleaning.
functions. ● Work lamp.
● Idle wheel motion detector with blade stalling ● One set of tools in tool box.
and breakage shutoff. ● One set of 2-meter roller stand.
● Hydraulic blade tension.
● Carbide blade guide with roller bearing. Optional Equipment
● Length setting: Manual setting. ● Nesting fixture for bundle cutting.
● Power driven blade-cleaning wire brush. ● Variable vise pressure.
● Automatic chip conveyor. ● Blade deviation monitor.
● Infinitely variable blade speed controlled by ● Blade height deviation control
inverter.

Specifications
FHBS-3028SA FHBS-4033SA FHBS-5650SA FHBS-8056SA
● (mm) 10~280 10~330 10~550 20~560
Cutting
Capacity ■ (mm) W10xH10~ W10xH100~ W10xH10~ W20xH20~
W300xH280 W400xH330 W560xH500 W800xH560
Bundle Max. (mm) W250xH100 W370xH170 W480xH240 W480xH280
Cutting Min. (mm) W165xH15 W165xH50 W240xH80 W260xH160
Size (mm) 3820x34x1.1 4242x34x1.1 5450x41x1.3 7450x54x1.6
Saw Speed (m/min) 20,35,50,65,80 16~85 (INV.)
Blade
Tension Hydraulic
Saw Blade 3.7 KW(5HP) 5.5 KW(7.5HP) 7.5 KW(10HP)
Motors Hydraulic Pump 0.75 KW(1HP) 1.5 KW(2HP) 2.2 KW(3HP)
Output
Coolant Pump 0.2 KW(1/4HP)
Hydraulic (L) 60 85 75
Tanks
Coolant (L) 75 80 110 140
Working Height (mm) 700 750 700
WxLxH Dimensions (mm) 2110x1210x1520 2240x1210x1550 2890x1550x1800 3650x1850x2150
Net Weight (kg) 1200 1650 2600 4900
