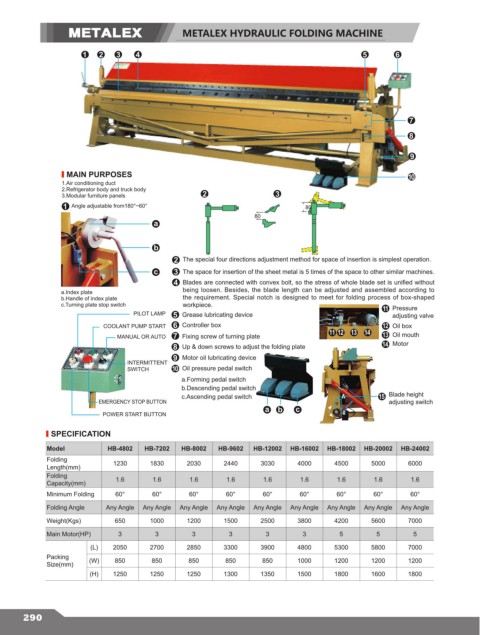

METALEX HYDRAULIC FOLDING MACHINE

1 2 3 4 5 6

7

8

9

MAIN PURPOSES 10
1.Air conditioning duct
2.Refrigerator body and truck body
3.Modular furniture panels 2 3
1 Angle adjustable from180°~60° 80
80
a

b
2 The special four directions adjustment method for space of insertion is simplest operation.
c 3 The space for insertion of the sheet metal is 5 times of the space to other similar machines.
4 Blades are connected with convex bolt, so the stress of whole blade set is unified without
a.Index plate being loosen. Besides, the blade length can be adjusted and assembled according to
b.Handle of index plate the requirement. Special notch is designed to meet for folding process of box-shaped
c.Turning plate stop switch workpiece. 11 Pressure
PILOT LAMP 5 Grease lubricating device adjusting valve
COOLANT PUMP START 6 Controller box 12 Oil box
MANUAL OR AUTO 7 Fixing screw of turning plate 11 12 13 14 13 Oil mouth
8 Up & down screws to adjust the folding plate 14 Motor
9 Motor oil lubricating device
INTERMITTENT
SWITCH 10 Oil pressure pedal switch
a.Forming pedal switch
b.Descending pedal switch
c.Ascending pedal switch 15 Blade height
EMERGENCY STOP BUTTON adjusting switch
a b c
POWER START BUTTON
SPECIFICATION

Model HB-4802 HB-7202 HB-8002 HB-9602 HB-12002 HB-16002 HB-18002 HB-20002 HB-24002
Folding 1230 1830 2030 2440 3030 4000 4500 5000 6000
Length(mm)
Folding 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6
Capacity(mm)
Minimum Folding 60° 60° 60° 60° 60° 60° 60° 60° 60°
Folding Angle Any Angle Any Angle Any Angle Any Angle Any Angle Any Angle Any Angle Any Angle Any Angle
Weight(Kgs) 650 1000 1200 1500 2500 3800 4200 5600 7000

Main Motor(HP) 3 3 3 3 3 3 5 5 5
(L) 2050 2700 2850 3300 3900 4800 5300 5800 7000
Packing
Size(mm) (W) 850 850 850 850 850 1000 1200 1200 1200
(H) 1250 1250 1250 1300 1350 1500 1800 1600 1800
