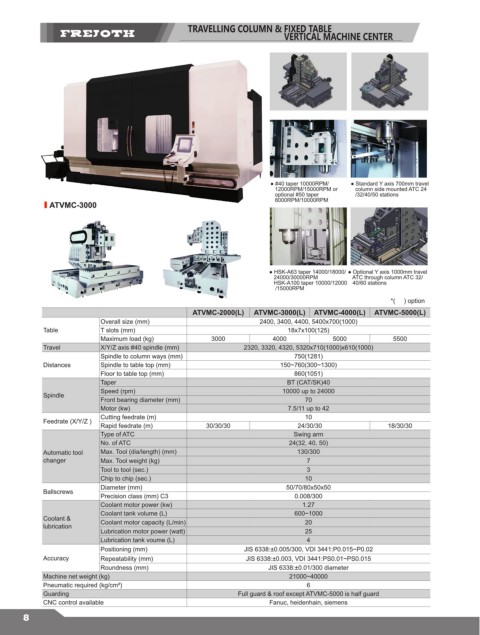

TRAVELLING COLUMN & FIXED TABLE
VERTICAL MACHINE CENTER

● #40 taper 10000RPM/ ● Standard Y axis 700mm travel
12000RPM/15000RPM or column side mounted ATC 24
optional #50 taper /32/40/50 stations
ATVMC-3000 8000RPM/10000RPM

● HSK-A63 taper 14000/18000/ ● Optional Y axis 1000mm travel
24000/30000RPM ATC through column ATC 32/
HSK-A100 taper 10000/12000 40/60 stations
/15000RPM
*( ) option
ATVMC-2000(L) ATVMC-3000(L) ATVMC-4000(L) ATVMC-5000(L)
Overall size (mm) 2400, 3400, 4400, 5400x700(1000)
Table T slots (mm) 18x7x100(125)
Maximum load (kg) 3000 4000 5000 5500
Travel X/Y/Z axis #40 spindle (mm) 2320, 3320, 4320, 5320x710(1000)x610(1000)
Spindle to column ways (mm) 750(1281)
Distances Spindle to table top (mm) 150~760(300~1300)
Floor to table top (mm) 860(1051)
Taper BT (CAT/SK)40
Speed (rpm) 10000 up to 24000
Spindle
Front bearing diameter (mm) 70
Motor (kw) 7.5/11 up to 42
Cutting feedrate (m) 10
Feedrate (X/Y/Z )
Rapid feedrate (m) 30/30/30 24/30/30 18/30/30
Type of ATC Swing arm
No. of ATC 24(32, 40, 50)
Automatic tool Max. Tool (dia/length) (mm) 130/300
changer Max. Tool weight (kg) 7
Tool to tool (sec.) 3
Chip to chip (sec.) 10
Diameter (mm) 50/70/80x50x50
Ballscrews
Precision class (mm) C3 0.008/300
Coolant motor power (kw) 1.27
Coolant tank volume (L) 600~1000
Coolant & Coolant motor capacity (L/min) 20
lubrication
Lubrication motor power (watt) 25
Lubrication tank voume (L) 4
Positioning (mm) JIS 6338:±0.005/300, VDI 3441:P0.015~P0.02
Accuracy Repeatability (mm) JIS 6338:±0.003, VDI 3441:PS0.01~PS0.015
Roundness (mm) JIS 6338:±0.01/300 diameter
Machine net weight (kg) 21000~40000
Pneumatic required (kg/cm²) 6
Guarding Full guard & roof except ATVMC-5000 is half guard
CNC control available Fanuc, heidenhain, siemens
