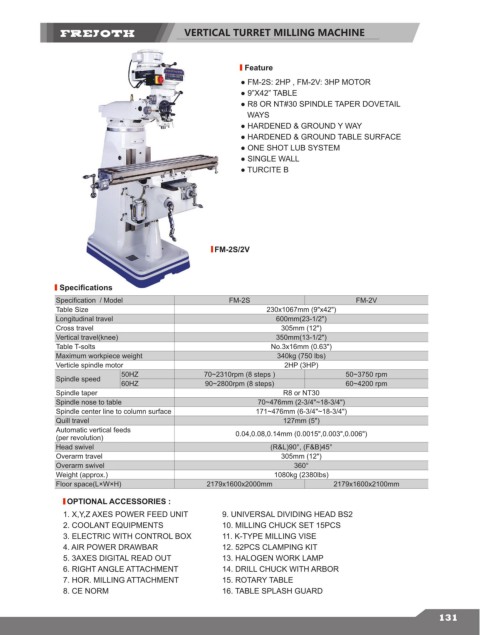

VERTICAL TURRET MILLING MACHINE

Feature
● FM-2S: 2HP , FM-2V: 3HP MOTOR
● 9”X42” TABLE
● R8 OR NT#30 SPINDLE TAPER DOVETAIL
WAYS
● HARDENED & GROUND Y WAY
● HARDENED & GROUND TABLE SURFACE
● ONE SHOT LUB SYSTEM
● SINGLE WALL
● TURCITE B

FM-2S/2V

Specifications
Specification / Model FM-2S FM-2V
Table Size 230x1067mm (9"x42")
Longitudinal travel 600mm(23-1/2")
Cross travel 305mm (12")
Vertical travel(knee) 350mm(13-1/2")
Table T-solts No.3x16mm (0.63")
Maximum workpiece weight 340kg (750 lbs)
Verticle spindle motor 2HP (3HP)
50HZ 70~2310rpm (8 steps ) 50~3750 rpm
Spindle speed
60HZ 90~2800rpm (8 steps) 60~4200 rpm
Spindle taper R8 or NT30
Spindle nose to table 70~476mm (2-3/4"~18-3/4")
Spindle center line to column surface 171~476mm (6-3/4"~18-3/4")
Quill travel 127mm (5")
Automatic vertical feeds 0.04,0.08,0.14mm (0.0015",0.003",0.006")
(per revolution)
Head swivel (R&L)90°, (F&B)45°
Overarm travel 305mm (12")
Overarm swivel 360°
Weight (approx.) 1080kg (2380lbs)
Floor space(L×W×H) 2179x1600x2000mm 2179x1600x2100mm

OPTIONAL ACCESSORIES :
1. X,Y,Z AXES POWER FEED UNIT 9. UNIVERSAL DIVIDING HEAD BS2
2. COOLANT EQUIPMENTS 10. MILLING CHUCK SET 15PCS
3. ELECTRIC WITH CONTROL BOX 11. K-TYPE MILLING VISE
4. AIR POWER DRAWBAR 12. 52PCS CLAMPING KIT
5. 3AXES DIGITAL READ OUT 13. HALOGEN WORK LAMP
6. RIGHT ANGLE ATTACHMENT 14. DRILL CHUCK WITH ARBOR
7. HOR. MILLING ATTACHMENT 15. ROTARY TABLE
8. CE NORM 16. TABLE SPLASH GUARD
