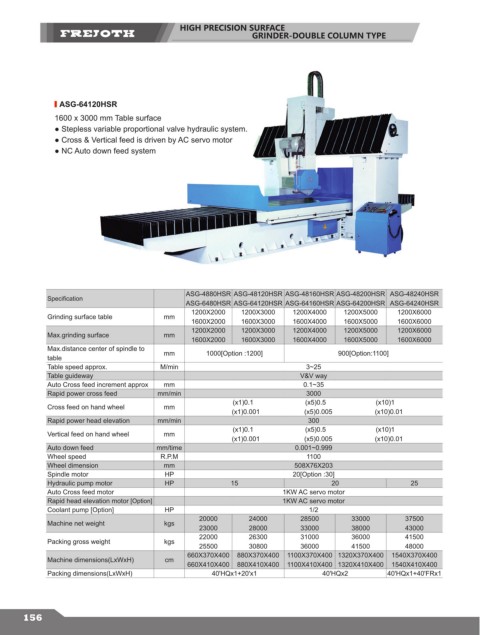

HIGH PRECISION SURFACE
GRINDER-DOUBLE COLUMN TYPE

ASG-64120HSR
1600 x 3000 mm Table surface
● Stepless variable proportional valve hydraulic system.
● Cross & Vertical feed is driven by AC servo motor
● NC Auto down feed system

ASG-4880HSR ASG-48120HSR ASG-48160HSR ASG-48200HSR ASG-48240HSR
Specification
ASG-6480HSR ASG-64120HSR ASG-64160HSR ASG-64200HSR ASG-64240HSR
1200X2000 1200X3000 1200X4000 1200X5000 1200X6000
Grinding surface table mm
1600X2000 1600X3000 1600X4000 1600X5000 1600X6000
1200X2000 1200X3000 1200X4000 1200X5000 1200X6000
Max.grinding surface mm
1600X2000 1600X3000 1600X4000 1600X5000 1600X6000
Max.distance center of spindle to mm 1000[Option :1200] 900[Option:1100]
table
Table speed approx. M/min 3~25
Table guideway V&V way
Auto Cross feed increment approx mm 0.1~35
Rapid power cross feed mm/min 3000
(x1)0.1 (x5)0.5 (x10)1
Cross feed on hand wheel mm
(x1)0.001 (x5)0.005 (x10)0.01
Rapid power head elevation mm/min 300
(x1)0.1 (x5)0.5 (x10)1
Vertical feed on hand wheel mm
(x1)0.001 (x5)0.005 (x10)0.01
Auto down feed mm/time 0.001~0.999
Wheel speed R.P.M 1100
Wheel dimension mm 508X76X203
Spindle motor HP 20[Option :30]
Hydraulic pump motor HP 15 20 25
Auto Cross feed motor 1KW AC servo motor
Rapid head elevation motor [Option] 1KW AC servo motor
Coolant pump [Option] HP 1/2
20000 24000 28500 33000 37500
Machine net weight kgs
23000 28000 33000 38000 43000
22000 26300 31000 36000 41500
Packing gross weight kgs
25500 30800 36000 41500 48000
660X370X400 880X370X400 1100X370X400 1320X370X400 1540X370X400
Machine dimensions(LxWxH) cm
660X410X400 880X410X400 1100X410X400 1320X410X400 1540X410X400
Packing dimensions(LxWxH) 40'HQx1+20'x1 40'HQx2 40'HQx1+40'FRx1
