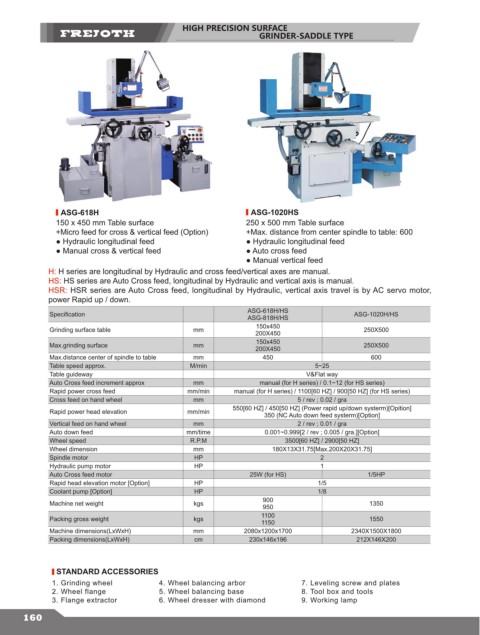

HIGH PRECISION SURFACE
GRINDER-SADDLE TYPE
ASG-618H ASG-1020HS
150 x 450 mm Table surface 250 x 500 mm Table surface
+Micro feed for cross & vertical feed (Option) +Max. distance from center spindle to table: 600
● Hydraulic longitudinal feed ● Hydraulic longitudinal feed
● Manual cross & vertical feed ● Auto cross feed
● Manual vertical feed
H: H series are longitudinal by Hydraulic and cross feed/vertical axes are manual.
HS: HS series are Auto Cross feed, longitudinal by Hydraulic and vertical axis is manual.
HSR: HSR series are Auto Cross feed, longitudinal by Hydraulic, vertical axis travel is by AC servo motor,
power Rapid up / down.
ASG-618H/HS
Specification ASG-818H/HS ASG-1020H/HS
150x450
Grinding surface table mm 200X450 250X500
150x450
Max.grinding surface mm 200X450 250X500
Max.distance center of spindle to table mm 450 600
Table speed approx. M/min 5~25
Table guideway V&Flat way
Auto Cross feed increment approx mm manual (for H series) / 0.1~12 (for HS series)
Rapid power cross feed mm/min manual (for H series) / 1100[60 HZ] / 900[50 HZ] (for HS series)
Cross feed on hand wheel mm 5 / rev ; 0.02 / gra
Rapid power head elevation mm/min 550[60 HZ] / 450[50 HZ] (Power rapid up/down systerm)[Opition]
350 (NC Auto down feed systerm)[Option]
Vertical feed on hand wheel mm 2 / rev ; 0.01 / gra
Auto down feed mm/time 0.001~0.999[2 / rev ; 0.005 / gra.][Option]
Wheel speed R.P.M 3500[60 HZ] / 2900[50 HZ]
Wheel dimension mm 180X13X31.75[Max.200X20X31.75]
Spindle motor HP 2
Hydraulic pump motor HP 1
Auto Cross feed motor 25W (for HS) 1/5HP
Rapid head elevation motor [Option] HP 1/5
Coolant pump [Option] HP 1/8
Machine net weight kgs 900 1350
950
Packing gross weight kgs 1100 1550
1150
Machine dimensions(LxWxH) mm 2080x1200x1700 2340X1500X1800
Packing dimensions(LxWxH) cm 230x146x196 212X146X200
STANDARD ACCESSORIES
1. Grinding wheel 4. Wheel balancing arbor 7. Leveling screw and plates
2. Wheel flange 5. Wheel balancing base 8. Tool box and tools
3. Flange extractor 6. Wheel dresser with diamond 9. Working lamp
