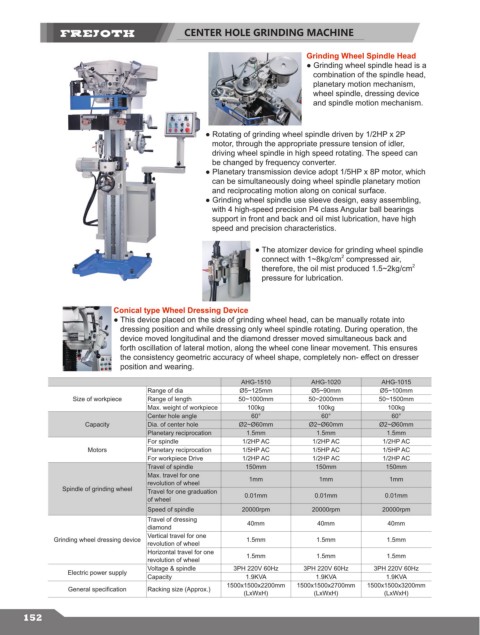

CENTER HOLE GRINDING MACHINE

Grinding Wheel Spindle Head
● Grinding wheel spindle head is a
combination of the spindle head,
planetary motion mechanism,
wheel spindle, dressing device
and spindle motion mechanism.

● Rotating of grinding wheel spindle driven by 1/2HP x 2P
motor, through the appropriate pressure tension of idler,
driving wheel spindle in high speed rotating. The speed can
be changed by frequency converter.
● Planetary transmission device adopt 1/5HP x 8P motor, which
can be simultaneously doing wheel spindle planetary motion
and reciprocating motion along on conical surface.
● Grinding wheel spindle use sleeve design, easy assembling,
with 4 high-speed precision P4 class Angular ball bearings
support in front and back and oil mist lubrication, have high
speed and precision characteristics.

● The atomizer device for grinding wheel spindle
2
connect with 1~8kg/cm compressed air,
2
therefore, the oil mist produced 1.5~2kg/cm
pressure for lubrication.

Conical type Wheel Dressing Device
● This device placed on the side of grinding wheel head, can be manually rotate into
dressing position and while dressing only wheel spindle rotating. During operation, the
device moved longitudinal and the diamond dresser moved simultaneous back and
forth oscillation of lateral motion, along the wheel cone linear movement. This ensures
the consistency geometric accuracy of wheel shape, completely non- effect on dresser
position and wearing.
AHG-1510 AHG-1020 AHG-1015
Range of dia Ø5~125mm Ø5~90mm Ø5~100mm
Size of workpiece Range of length 50~1000mm 50~2000mm 50~1500mm
Max. weight of workpiece 100kg 100kg 100kg
Center hole angle 60° 60° 60°
Capacity Dia. of center hole Ø2~Ø60mm Ø2~Ø60mm Ø2~Ø60mm
Planetary reciprocation 1.5mm 1.5mm 1.5mm
For spindle 1/2HP AC 1/2HP AC 1/2HP AC
Motors Planetary reciprocation 1/5HP AC 1/5HP AC 1/5HP AC
For workpiece Drive 1/2HP AC 1/2HP AC 1/2HP AC
Travel of spindle 150mm 150mm 150mm
Max. travel for one 1mm 1mm 1mm
revolution of wheel
Spindle of grinding wheel Travel for one graduation
of wheel 0.01mm 0.01mm 0.01mm
Speed of spindle 20000rpm 20000rpm 20000rpm
Travel of dressing 40mm 40mm 40mm
diamond
Vertical travel for one
Grinding wheel dressing device 1.5mm 1.5mm 1.5mm
revolution of wheel
Horizontal travel for one 1.5mm 1.5mm 1.5mm
revolution of wheel
Voltage & spindle 3PH 220V 60Hz 3PH 220V 60Hz 3PH 220V 60Hz
Electric power supply
Capacity 1.9KVA 1.9KVA 1.9KVA
1500x1500x2200mm 1500x1500x2700mm 1500x1500x3200mm
General specification Racking size (Approx.)
(LxWxH) (LxWxH) (LxWxH)
