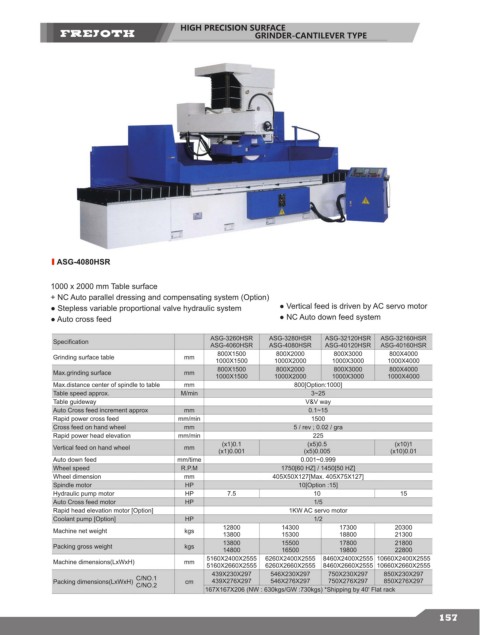

HIGH PRECISION SURFACE
GRINDER-CANTILEVER TYPE

ASG-4080HSR

1000 x 2000 mm Table surface
+ NC Auto parallel dressing and compensating system (Option)
● Stepless variable proportional valve hydraulic system ● Vertical feed is driven by AC servo motor
● Auto cross feed ● NC Auto down feed system

ASG-3260HSR ASG-3280HSR ASG-32120HSR ASG-32160HSR
Specification
ASG-4060HSR ASG-4080HSR ASG-40120HSR ASG-40160HSR
800X1500 800X2000 800X3000 800X4000
Grinding surface table mm 1000X1500 1000X2000 1000X3000 1000X4000
800X3000
800X4000
800X2000
800X1500
Max.grinding surface mm 1000X1500 1000X2000 1000X3000 1000X4000
Max.distance center of spindle to table mm 800[Option:1000]
Table speed approx. M/min 3~25
Table guideway V&V way
Auto Cross feed increment approx mm 0.1~15
Rapid power cross feed mm/min 1500
Cross feed on hand wheel mm 5 / rev ; 0.02 / gra
Rapid power head elevation mm/min 225
Vertical feed on hand wheel mm (x1)0.1 (x5)0.5 (x10)1
(x1)0.001 (x5)0.005 (x10)0.01
Auto down feed mm/time 0.001~0.999
Wheel speed R.P.M 1750[60 HZ] / 1450[50 HZ]
Wheel dimension mm 405X50X127[Max. 405X75X127]
Spindle motor HP 10[Option :15]
Hydraulic pump motor HP 7.5 10 15
Auto Cross feed motor HP 1/5
Rapid head elevation motor [Option] 1KW AC servo motor
Coolant pump [Option] HP 1/2
12800 14300 17300 20300
Machine net weight kgs 13800 15300 18800 21300
Packing gross weight kgs 13800 15500 17800 21800
14800
16500
19800
22800
Machine dimensions(LxWxH) mm 5160X2400X2555 6260X2400X2555 8460X2400X2555 10660X2400X2555
8460X2660X2555 10660X2660X2555
5160X2660X2555
6260X2660X2555
439X230X297 546X230X297 750X230X297 850X230X297
C/NO.1
Packing dimensions(LxWxH) C/NO.2 cm 439X276X297 546X276X297 750X276X297 850X276X297
167X167X206 (NW : 630kgs/GW :730kgs) *Shipping by 40' Flat rack
