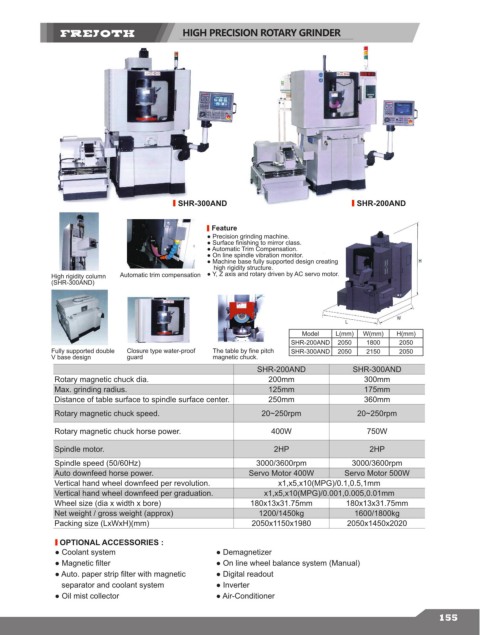

HIGH PRECISION ROTARY GRINDER

SHR-300AND SHR-200AND

Feature
● Precision grinding machine.
● Surface finishing to mirror class.
● Automatic Trim Compensation.
● On line spindle vibration monitor.
● Machine base fully supported design creating
high rigidity structure.
High rigidity column Automatic trim compensation ● Y, Z axis and rotary driven by AC servo motor.
(SHR-300AND)

Model L(mm) W(mm) H(mm)
SHR-200AND 2050 1800 2050
Fully supported double Closure type water-proof The table by fine pitch SHR-300AND 2050 2150 2050
V base design guard magnetic chuck.
SHR-200AND SHR-300AND
Rotary magnetic chuck dia. 200mm 300mm
Max. grinding radius. 125mm 175mm
Distance of table surface to spindle surface center. 250mm 360mm
Rotary magnetic chuck speed. 20~250rpm 20~250rpm

Rotary magnetic chuck horse power. 400W 750W

Spindle motor. 2HP 2HP
Spindle speed (50/60Hz) 3000/3600rpm 3000/3600rpm
Auto downfeed horse power. Servo Motor 400W Servo Motor 500W
Vertical hand wheel downfeed per revolution. x1,x5,x10(MPG)/0.1,0.5,1mm
Vertical hand wheel downfeed per graduation. x1,x5,x10(MPG)/0.001,0.005,0.01mm
Wheel size (dia x width x bore) 180x13x31.75mm 180x13x31.75mm
Net weight / gross weight (approx) 1200/1450kg 1600/1800kg
Packing size (LxWxH)(mm) 2050x1150x1980 2050x1450x2020

OPTIONAL ACCESSORIES :
● Coolant system ● Demagnetizer
● Magnetic filter ● On line wheel balance system (Manual)
● Auto. paper strip filter with magnetic ● Digital readout
separator and coolant system ● Inverter
● Oil mist collector ● Air-Conditioner
