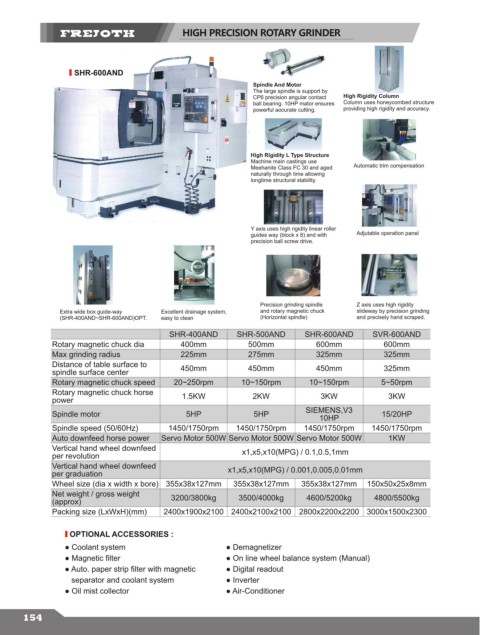

HIGH PRECISION ROTARY GRINDER

SHR-600AND
Spindle And Motor
The large spindle is support by
CP6 precision angular contact High Rigidity Column
ball bearing. 10HP mator ensures Column uses honeycombed structure
powerful aocurate cutting. providing high rigidity and accuracy.

High Rigidity L Type Structure
Machine main castings use
Meehanite Class FC 30 and aged Automatic trim compensation
naturally through time allowing
longtime structural stability.

Y axis uses high rigidity linear roller
guides way (block x 8) and with Adjutable operation panel
precision ball screw drive.

Precision grinding spindle Z axis uses high rigidity
Extra wide box guide-way Excellent drainage system, and rotary magnetic chuck slideway by precision grinding
(SHR-400AND~SHR-600AND)OPT. easy to clean (Horizontal spindle) and precisely hand scraped.
SHR-400AND SHR-500AND SHR-600AND SVR-600AND
Rotary magnetic chuck dia 400mm 500mm 600mm 600mm
Max grinding radius 225mm 275mm 325mm 325mm
Distance of table surface to 450mm 450mm 450mm 325mm
spindle surface center
Rotary magnetic chuck speed 20~250rpm 10~150rpm 10~150rpm 5~50rpm
Rotary magnetic chuck horse 1.5KW 2KW 3KW 3KW
power
Spindle motor 5HP 5HP SIEMENS,V3 15/20HP
10HP
Spindle speed (50/60Hz) 1450/1750rpm 1450/1750rpm 1450/1750rpm 1450/1750rpm
Auto downfeed horse power Servo Motor 500W Servo Motor 500W Servo Motor 500W 1KW
Vertical hand wheel downfeed x1,x5,x10(MPG) / 0.1,0.5,1mm
per revolution
Vertical hand wheel downfeed x1,x5,x10(MPG) / 0.001,0.005,0.01mm
per graduation
Wheel size (dia x width x bore) 355x38x127mm 355x38x127mm 355x38x127mm 150x50x25x8mm
Net weight / gross weight 3200/3800kg 3500/4000kg 4600/5200kg 4800/5500kg
(approx)
Packing size (LxWxH)(mm) 2400x1900x2100 2400x2100x2100 2800x2200x2200 3000x1500x2300

OPTIONAL ACCESSORIES :
● Coolant system ● Demagnetizer
● Magnetic filter ● On line wheel balance system (Manual)
● Auto. paper strip filter with magnetic ● Digital readout
separator and coolant system ● Inverter
● Oil mist collector ● Air-Conditioner
