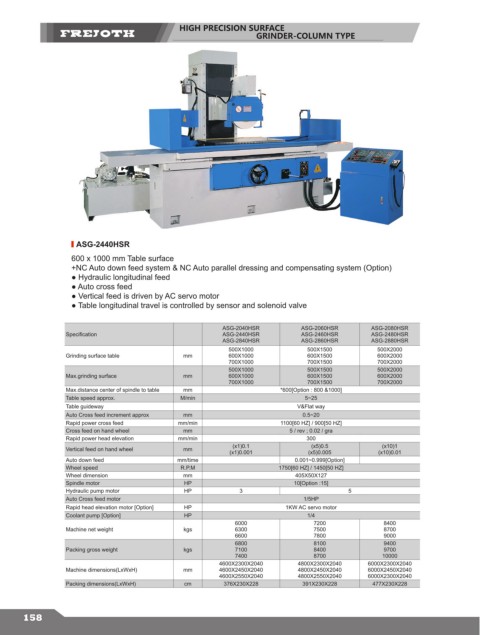

HIGH PRECISION SURFACE
GRINDER-COLUMN TYPE

ASG-2440HSR
600 x 1000 mm Table surface
+NC Auto down feed system & NC Auto parallel dressing and compensating system (Option)
● Hydraulic longitudinal feed
● Auto cross feed
● Vertical feed is driven by AC servo motor
● Table longitudinal travel is controlled by sensor and solenoid valve

ASG-2040HSR ASG-2060HSR ASG-2080HSR
Specification ASG-2440HSR ASG-2460HSR ASG-2480HSR
ASG-2840HSR ASG-2860HSR ASG-2880HSR
500X1000 500X1500 500X2000
Grinding surface table mm 600X1000 600X1500 600X2000
700X1000 700X1500 700X2000
500X1000 500X1500 500X2000
Max.grinding surface mm 600X1000 600X1500 600X2000
700X1000 700X1500 700X2000
Max.distance center of spindle to table mm *600[Option : 800 &1000]
Table speed approx. M/min 5~25
Table guideway V&Flat way
Auto Cross feed increment approx mm 0.5~20
Rapid power cross feed mm/min 1100[60 HZ] / 900[50 HZ]
Cross feed on hand wheel mm 5 / rev ; 0.02 / gra
Rapid power head elevation mm/min 300
(x1)0.1 (x5)0.5 (x10)1
Vertical feed on hand wheel mm
(x1)0.001 (x5)0.005 (x10)0.01
Auto down feed mm/time 0.001~0.999[Option]
Wheel speed R.P.M 1750[60 HZ] / 1450[50 HZ]
Wheel dimension mm 405X50X127
Spindle motor HP 10[Option :15]
Hydraulic pump motor HP 3 5
Auto Cross feed motor 1/5HP
Rapid head elevation motor [Option] HP 1KW AC servo motor
Coolant pump [Option] HP 1/4
6000 7200 8400
Machine net weight kgs 6300 7500 8700
6600 7800 9000
6800 8100 9400
Packing gross weight kgs 7100 8400 9700
7400 8700 10000
4600X2300X2040 4800X2300X2040 6000X2300X2040
Machine dimensions(LxWxH) mm 4600X2450X2040 4800X2450X2040 6000X2450X2040
4600X2550X2040 4800X2550X2040 6000X2300X2040
Packing dimensions(LxWxH) cm 376X230X228 391X230X228 477X230X228
