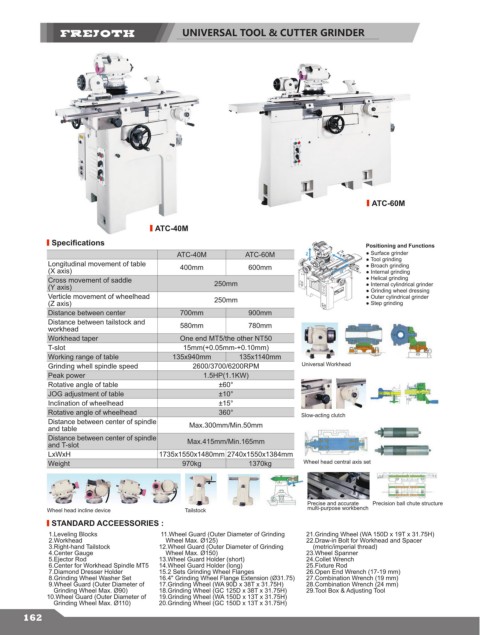

UNIVERSAL TOOL & CUTTER GRINDER

ATC-60M

ATC-40M
Specifications Positioning and Functions
ATC-40M ATC-60M ● Surface grinder
Longitudinal movement of table 400mm 600mm ● Tool grinding
● Broach grinding
(X axis) ● Internal grinding
Cross movement of saddle 250mm ● Helical grinding
(Y axis) ● Internal cylindrical grinder
● Grinding wheel dressing
Verticle movement of wheelhead 250mm ● Outer cylindrical grinder
(Z axis) ● Step grinding
Distance between center 700mm 900mm
Distance between tailstock and
workhead 580mm 780mm
Workhead taper One end MT5/the other NT50
T-slot 15mm(+0.05mm-+0.10mm)
Working range of table 135x940mm 135x1140mm
Grinding whell spindle speed 2600/3700/6200RPM Universal Workhead
Peak power 1.5HP(1.1KW)
Rotative angle of table ±60°
JOG adjustment of table ±10°
Inclination of wheelhead ±15°
Rotative angle of wheelhead 360° Slow-acting clutch
Distance between center of spindle Max.300mm/Min.50mm
and table
Distance between center of spindle
and T-slot Max.415mm/Min.165mm
LxWxH 1735x1550x1480mm 2740x1550x1384mm
Weight 970kg 1370kg Wheel head central axis set

Precise and accurate Precision ball chute structure
Wheel head incline device Tailstock multi-purpose workbench
STANDARD ACCEESSORIES :
1.Leveling Blocks 11.Wheel Guard (Outer Diameter of Grinding 21.Grinding Wheel (WA 150D x 19T x 31.75H)
2.Workhead Wheel Max. Ø125) 22.Draw-in Bolt for Workhead and Spacer
3.Right-hand Tailstock 12.Wheel Guard (Outer Diameter of Grinding (metric/imperial thread)
4.Center Gauge Wheel Max. Ø150) 23.Wheel Spanner
5.Ejector Rod 13.Wheel Guard Holder (short) 24.Collet Wrench
6.Center for Workhead Spindle MT5 14.Wheel Guard Holder (long) 25.Fixture Rod
7.Diamond Dresser Holder 15.2 Sets Grinding Wheel Flanges 26.Open End Wrench (17-19 mm)
8.Grinding Wheel Washer Set 16.4" Grinding Wheel Flange Extension (Ø31.75) 27.Combination Wrench (19 mm)
9.Wheel Guard (Outer Diameter of 17.Grinding Wheel (WA 90D x 38T x 31.75H) 28.Combination Wrench (24 mm)
Grinding Wheel Max. Ø90) 18.Grinding Wheel (GC 125D x 38T x 31.75H) 29.Tool Box & Adjusting Tool
10.Wheel Guard (Outer Diameter of 19.Grinding Wheel (WA 150D x 13T x 31.75H)
Grinding Wheel Max. Ø110) 20.Grinding Wheel (GC 150D x 13T x 31.75H)
