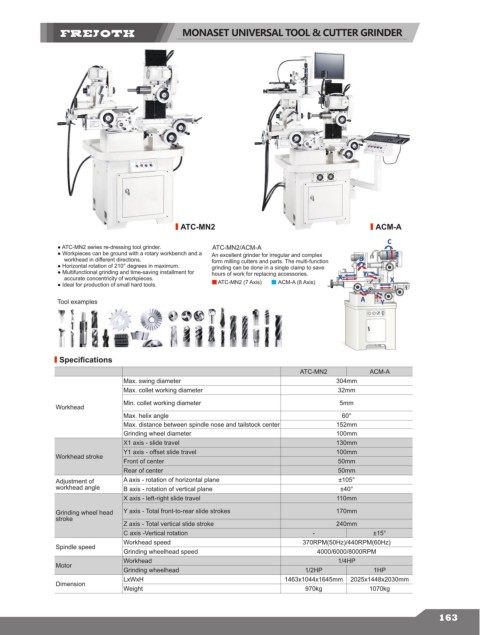

MONASET UNIVERSAL TOOL & CUTTER GRINDER

ATC-MN2 ACM-A

● ATC-MN2 series re-dressing tool grinder. ATC-MN2/ACM-A
● Workpieces can be ground with a rotary workbench and a An excellent grinder for irregular and complex
workhead in different directions. form milling cutters and parts. The multi-function
● Horizontal rotation of 210° degrees in maximum. grinding can be done in a single clamp to save
● Multifunctional grinding and time-saving installment for hours of work for replacing accessories.
accurate concentricity of workpieces.
● Ideal for production of small hard tools. ATC-MN2 (7 Axis) ACM-A (8 Axis)

Tool examples

Specifications

ATC-MN2 ACM-A
Max. swing diameter 304mm
Max. collet working diameter 32mm
Min. collet working diameter 5mm
Workhead
Max. helix angle 60°
Max. distance between spindle nose and tailstock center 152mm
Grinding wheel diameter 100mm
X1 axis - slide travel 130mm
Y1 axis - offset slide travel 100mm
Workhead stroke
Front of center 50mm
Rear of center 50mm
Adjustment of A axis - rotation of horizontal plane ±105°
workhead angle B axis - rotation of vertical plane ±40°
X axis - left-right slide travel 110mm
Grinding wheel head Y axis - Total front-to-rear slide strokes 170mm
stroke
Z axis - Total vertical slide stroke 240mm
C axis -Vertical rotation - ±15°
Workhead speed 370RPM(50Hz)/440RPM(60Hz)
Spindle speed
Grinding wheelhead speed 4000/6000/8000RPM
Workhead 1/4HP
Motor
Grinding wheelhead 1/2HP 1HP
LxWxH 1463x1044x1645mm 2025x1448x2030mm
Dimension
Weight 970kg 1070kg
