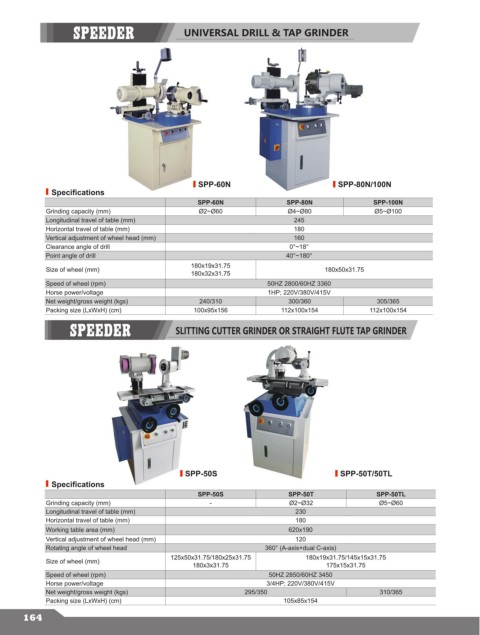

UNIVERSAL DRILL & TAP GRINDER

SPP-60N SPP-80N/100N
Specifications
SPP-60N SPP-80N SPP-100N
Grinding capacity (mm) Ø2~Ø60 Ø4~Ø80 Ø5~Ø100
Longitudinal travel of table (mm) 245
Horizontal travel of table (mm) 180
Vertical adjustment of wheel head (mm) 160
Clearance angle of drill 0°~18°
Point angle of drill 40°~180°
180x19x31.75
Size of wheel (mm) 180x50x31.75
180x32x31.75
Speed of wheel (rpm) 50HZ 2800/60HZ 3360
Horse power/voltage 1HP; 220V/380V/415V
Net weight/gross weight (kgs) 240/310 300/360 305/365
Packing size (LxWxH) (cm) 100x95x156 112x100x154 112x100x154

SLITTING CUTTER GRINDER OR STRAIGHT FLUTE TAP GRINDER

SPP-50S SPP-50T/50TL
Specifications
SPP-50S SPP-50T SPP-50TL
Grinding capacity (mm) - Ø2~Ø32 Ø5~Ø60
Longitudinal travel of table (mm) 230
Horizontal travel of table (mm) 180
Working table area (mm) 620x190
Vertical adjustment of wheel head (mm) 120
Rotating angle of wheel head 360° (A-axis+dual C-axis)
125x50x31.75/180x25x31.75 180x19x31.75/145x15x31.75
Size of wheel (mm)
180x3x31.75 175x15x31.75
Speed of wheel (rpm) 50HZ 2850/60HZ 3450
Horse power/voltage 3/4HP; 220V/380V/415V
Net weight/gross weight (kgs) 295/350 310/365
Packing size (LxWxH) (cm) 105x85x154
