P. 168

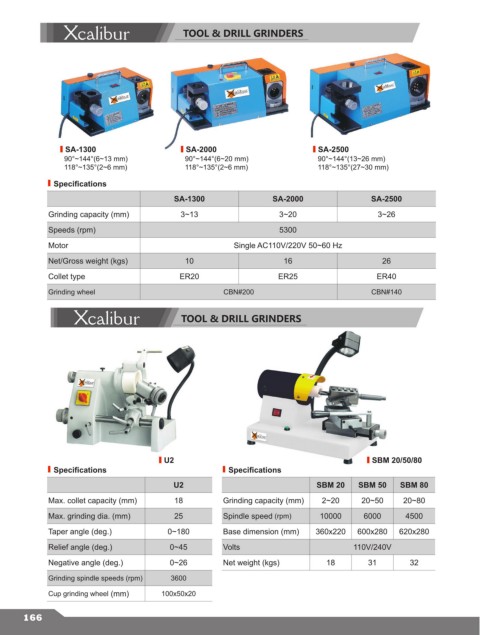

TOOL & DRILL GRINDERS
SA-1300 SA-2000 SA-2500
90°~144°(6~13 mm) 90°~144°(6~20 mm) 90°~144°(13~26 mm)
118°~135°(2~6 mm) 118°~135°(2~6 mm) 118°~135°(27~30 mm)
Specifications
SA-1300 SA-2000 SA-2500
Grinding capacity (mm) 3~13 3~20 3~26
Speeds (rpm) 5300
Motor Single AC110V/220V 50~60 Hz
Net/Gross weight (kgs) 10 16 26
Collet type ER20 ER25 ER40
Grinding wheel CBN#200 CBN#140
TOOL & DRILL GRINDERS
U2 SBM 20/50/80
Specifications Specifications
U2 SBM 20 SBM 50 SBM 80
Max. collet capacity (mm) 18 Grinding capacity (mm) 2~20 20~50 20~80
Max. grinding dia. (mm) 25 Spindle speed (rpm) 10000 6000 4500
Taper angle (deg.) 0~180 Base dimension (mm) 360x220 600x280 620x280
Relief angle (deg.) 0~45 Volts 110V/240V
Negative angle (deg.) 0~26 Net weight (kgs) 18 31 32
Grinding spindle speeds (rpm) 3600
Cup grinding wheel (mm) 100x50x20
166
