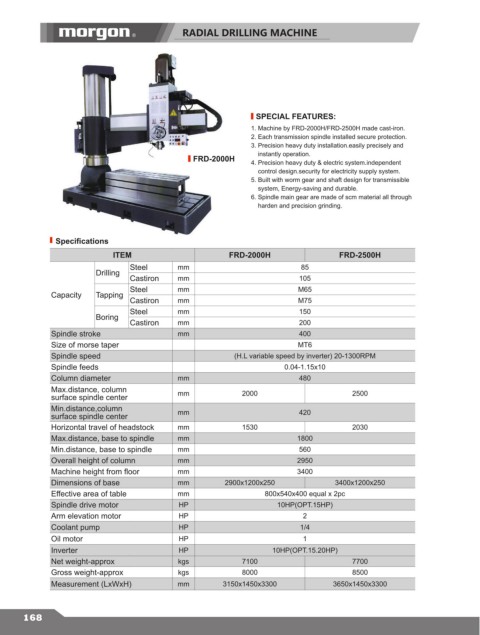

RADIAL DRILLING MACHINE

SPECIAL FEATURES:
1. Machine by FRD-2000H/FRD-2500H made cast-iron.
2. Each transmission spindle installed secure protection.
3. Precision heavy duty installation.easily precisely and
FRD-2000H instantly operation.
4. Precision heavy duty & electric system.independent
control design.security for electricity supply system.
5. Built with worm gear and shaft design for transmissible
system, Energy-saving and durable.
6. Spindle main gear are made of scm material all through
harden and precision grinding.

Specifications
ITEM FRD-2000H FRD-2500H
Steel mm 85
Drilling
Castiron mm 105
Steel mm M65
Capacity Tapping
Castiron mm M75
Steel mm 150
Boring
Castiron mm 200
Spindle stroke mm 400
Size of morse taper MT6
Spindle speed (H.L variable speed by inverter) 20-1300RPM
Spindle feeds 0.04-1.15x10
Column diameter mm 480
Max.distance, column mm 2000 2500
surface spindle center
Min.distance,column mm 420
surface spindle center
Horizontal travel of headstock mm 1530 2030
Max.distance, base to spindle mm 1800
Min.distance, base to spindle mm 560
Overall height of column mm 2950
Machine height from floor mm 3400
Dimensions of base mm 2900x1200x250 3400x1200x250
Effective area of table mm 800x540x400 equal x 2pc
Spindle drive motor HP 10HP(OPT.15HP)
Arm elevation motor HP 2
Coolant pump HP 1/4
Oil motor HP 1
Inverter HP 10HP(OPT.15.20HP)
Net weight-approx kgs 7100 7700
Gross weight-approx kgs 8000 8500
Measurement (LxWxH) mm 3150x1450x3300 3650x1450x3300
