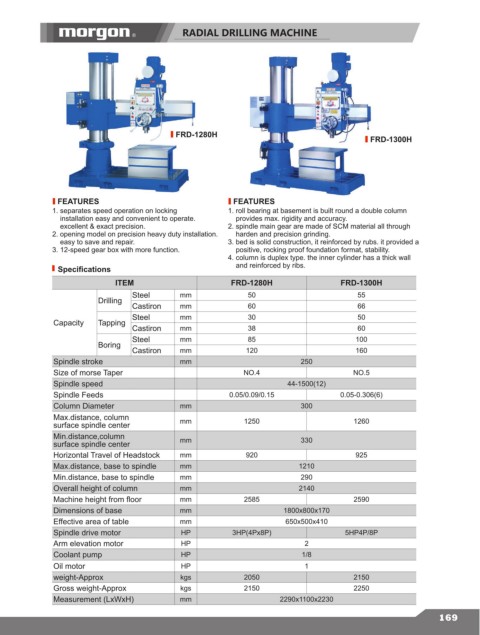

RADIAL DRILLING MACHINE

FRD-1280H
FRD-1300H

FEATURES FEATURES
1. separates speed operation on locking 1. roll bearing at basement is built round a double column
installation easy and convenient to operate. provides max. rigidity and accuracy.
excellent & exact precision. 2. spindle main gear are made of SCM material all through
2. opening model on precision heavy duty installation. harden and precision grinding.
easy to save and repair. 3. bed is solid construction, it reinforced by rubs. it provided a
3. 12-speed gear box with more function. positive, rocking proof foundation format, stability.
4. column is duplex type. the inner cylinder has a thick wall
Specifications and reinforced by ribs.
ITEM FRD-1280H FRD-1300H
Steel mm 50 55
Drilling
Castiron mm 60 66
Steel mm 30 50
Capacity Tapping
Castiron mm 38 60
Steel mm 85 100
Boring
Castiron mm 120 160
Spindle stroke mm 250
Size of morse Taper NO.4 NO.5
Spindle speed 44-1500(12)
Spindle Feeds 0.05/0.09/0.15 0.05-0.306(6)
Column Diameter mm 300
Max.distance, column mm 1250 1260
surface spindle center
Min.distance,column mm 330
surface spindle center
Horizontal Travel of Headstock mm 920 925
Max.distance, base to spindle mm 1210
Min.distance, base to spindle mm 290
Overall height of column mm 2140
Machine height from floor mm 2585 2590
Dimensions of base mm 1800x800x170
Effective area of table mm 650x500x410
Spindle drive motor HP 3HP(4Px8P) 5HP4P/8P
Arm elevation motor HP 2
Coolant pump HP 1/8
Oil motor HP 1
weight-Approx kgs 2050 2150
Gross weight-Approx kgs 2150 2250
Measurement (LxWxH) mm 2290x1100x2230
