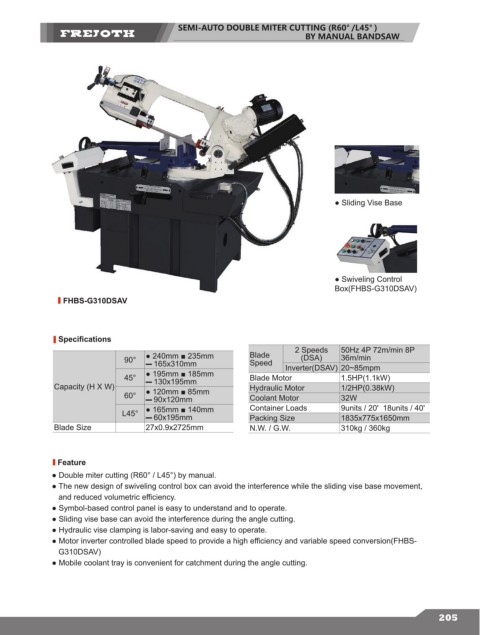

SEMI-AUTO DOUBLE MITER CUTTING (R60° /L45° )
BY MANUAL BANDSAW

● Sliding Vise Base

● Swiveling Control
Box(FHBS-G310DSAV)
FHBS-G310DSAV

Specifications
2 Speeds 50Hz 4P 72m/min 8P
(DSA)
36m/min
90° ● 240mm ■ 235mm Blade Inverter(DSAV) 20~85mpm
Speed
▬ 165x310mm
45° ● 195mm ■ 185mm Blade Motor 1.5HP(1.1kW)
▬ 130x195mm
Capacity (H X W) Hydraulic Motor 1/2HP(0.38kW)
60° ● 120mm ■ 85mm Coolant Motor 32W
▬ 90x120mm
L45° ● 165mm ■ 140mm Container Loads 9units / 20' 18units / 40'
▬ 60x195mm
1835x775x1650mm
Packing Size
Blade Size 27x0.9x2725mm N.W. / G.W. 310kg / 360kg

Feature
● Double miter cutting (R60° / L45°) by manual.
● The new design of swiveling control box can avoid the interference while the sliding vise base movement,
and reduced volumetric efficiency.
● Symbol-based control panel is easy to understand and to operate.
● Sliding vise base can avoid the interference during the angle cutting.
● Hydraulic vise clamping is labor-saving and easy to operate.
● Motor inverter controlled blade speed to provide a high efficiency and variable speed conversion(FHBS-
G310DSAV)
● Mobile coolant tray is convenient for catchment during the angle cutting.
