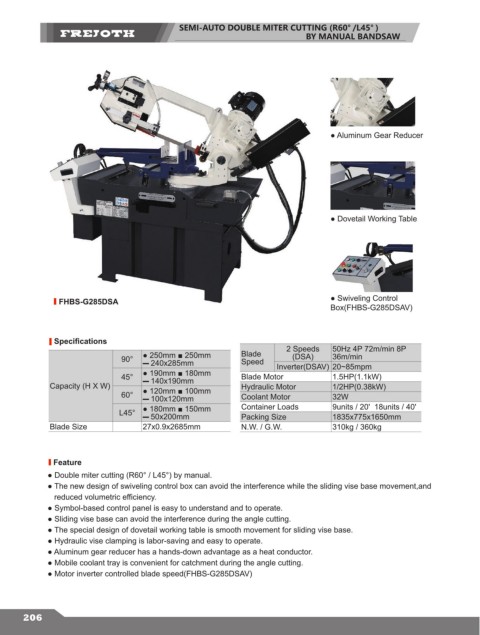

SEMI-AUTO DOUBLE MITER CUTTING (R60° /L45° )
BY MANUAL BANDSAW

● Aluminum Gear Reducer

● Dovetail Working Table

FHBS-G285DSA ● Swiveling Control
Box(FHBS-G285DSAV)

Specifications 2 Speeds 50Hz 4P 72m/min 8P
36m/min
(DSA)
90° ● 250mm ■ 250mm Blade Inverter(DSAV) 20~85mpm
Speed
▬ 240x285mm
45° ● 190mm ■ 180mm Blade Motor 1.5HP(1.1kW)
▬ 140x190mm
Capacity (H X W) Hydraulic Motor 1/2HP(0.38kW)
60° ● 120mm ■ 100mm Coolant Motor 32W
▬ 100x120mm
L45° ● 180mm ■ 150mm Container Loads 9units / 20' 18units / 40'
1835x775x1650mm
▬ 50x200mm
Packing Size
Blade Size 27x0.9x2685mm N.W. / G.W. 310kg / 360kg

Feature
● Double miter cutting (R60° / L45°) by manual.
● The new design of swiveling control box can avoid the interference while the sliding vise base movement,and
reduced volumetric efficiency.
● Symbol-based control panel is easy to understand and to operate.
● Sliding vise base can avoid the interference during the angle cutting.
● The special design of dovetail working table is smooth movement for sliding vise base.
● Hydraulic vise clamping is labor-saving and easy to operate.
● Aluminum gear reducer has a hands-down advantage as a heat conductor.
● Mobile coolant tray is convenient for catchment during the angle cutting.
● Motor inverter controlled blade speed(FHBS-G285DSAV)

206
